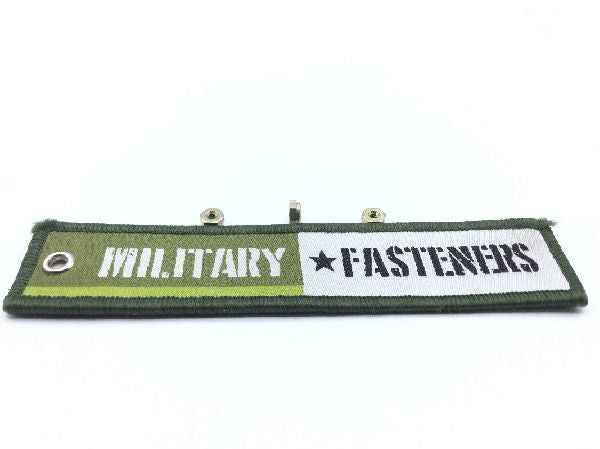

MS20365-440A Self-Locking Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

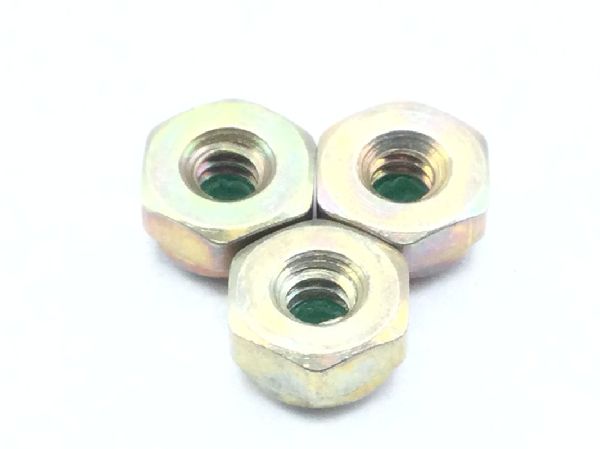

MS20365-440A Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic polyamide locking insert

Surface Treatment

Cl 3 federal specification single treatment response nut type 2 qq-p-416

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.112 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Counterbore Diameter: 0.116 inches nut and 0.156 inches nut
Countersink Angle: 88.0 degrees nut
End Application: ec- mc-130h ( ac-130h aircraft an/uya-4(v) tactical data system
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.133 inches and 0.157 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Width Across Flats: Between 0.243 inches and 0.251 inches
Lubrication: Soluble lubricant
