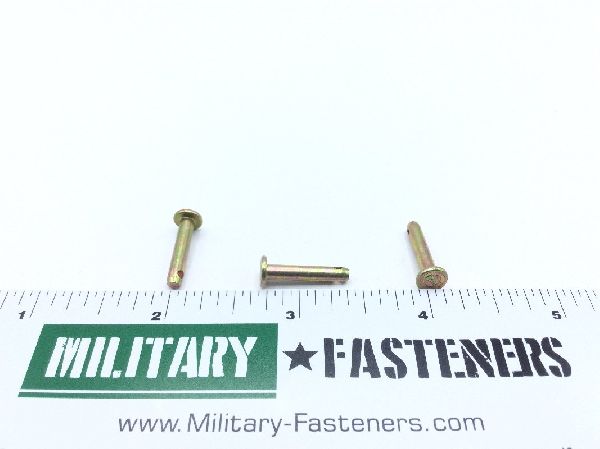

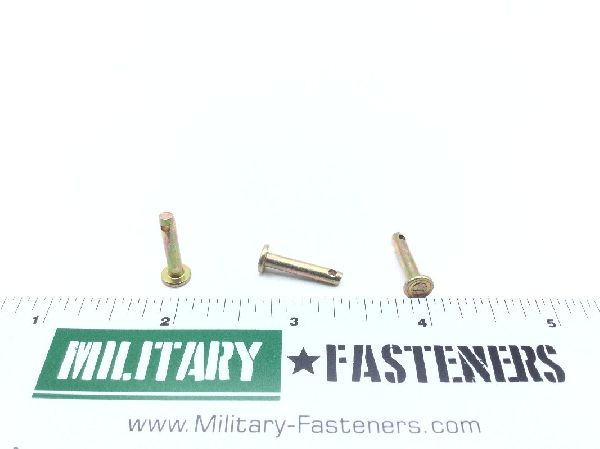

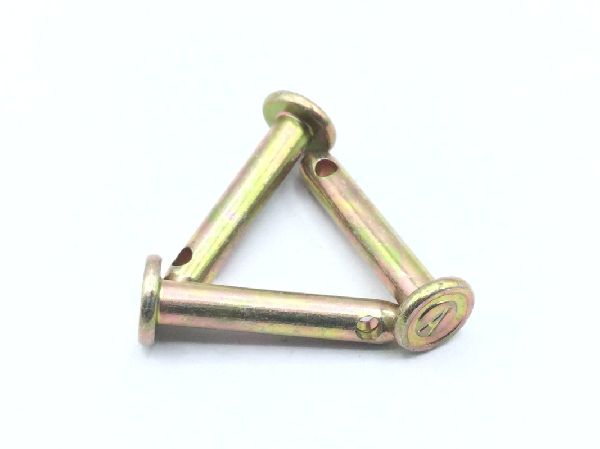

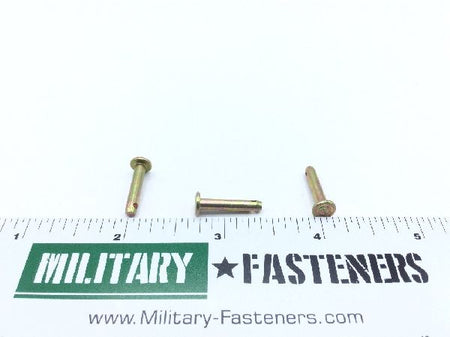

MS20392-1C17 Straight Headed Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $1.58

Units per Pack 20

Price per Pack $31.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $31.60

Add item to quote

Head Style

Pan no. 2

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Chamfer Length: 0.046 inches
Distance From Centerline Of Hole To End Of Pin: 0.091 inches
First Hole Diameter: Between 0.060 inches and 0.080 inches
Hardness Rating: 26.5 rockwell c and 32.0 rockwell c
Height: 0.046 inches
Hole Arrangement Style: One end drilled
Material Specification: Ams 6300 assn standard 1st material response or mil-s-6758 military specification 2nd material response or mil-s-6050 military specification 3rd material response
Pin Chamfer Angle: 15.0 degrees
Pin Head Diameter: 0.250 inches
Shear Strength: 1840 double pound
Style Designator: Straight
Under Head Length: Between 0.647 inches and 0.667 inches
Diameter: Between 0.122 inches and 0.124 inches
