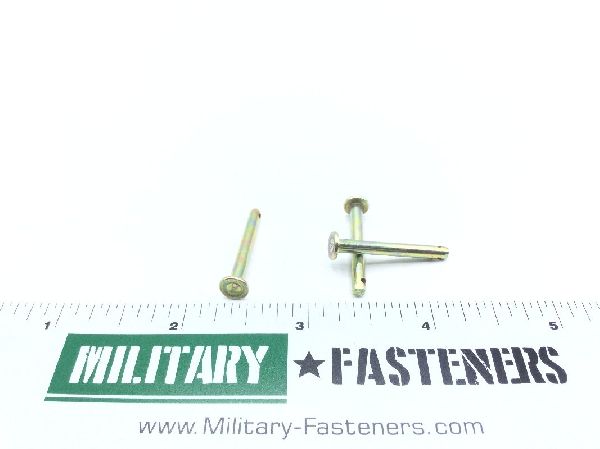

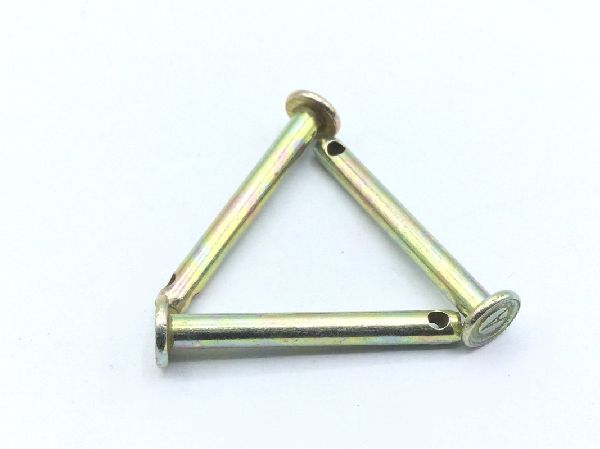

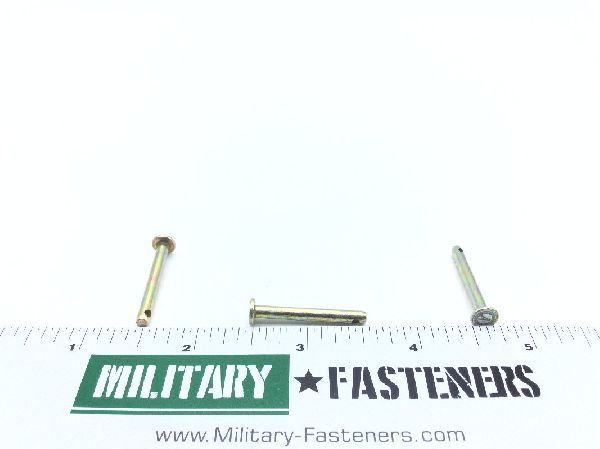

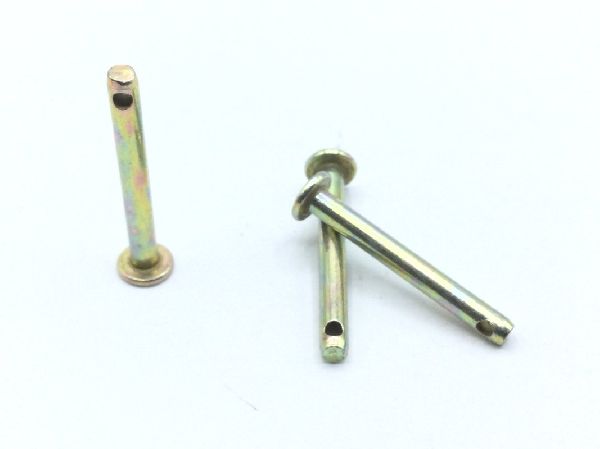

MS20392-1C29 Straight Headed Pin

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $1.04

Units per Pack 50

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Pan no. 2 (r1 not required in item description)

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Chamfer Length: 0.062 inches
Distance From Centerline Of Hole To End Of Pin: 0.091 inches
First Hole Diameter: Between 0.060 inches and 0.080 inches
Hardness Rating: 26.5 rockwell c and 32.0 rockwell c
Height: Between 0.030 inches and 0.062 inches
Hole Arrangement Style: One end drilled
Material Specification: Ams 6300 assn standard 1st material response or mil-s-6758 military specification 2nd material response or mil-s-6050 military specification 3rd material response
Pin Chamfer Angle: Between 14.5 degrees and 15.5 degrees
Pin Head Diameter: Between 0.234 inches and 0.266 inches
Special Features: In lieu of chamfer pin chamfer end may be 0.031 in. nom radius
Style Designator: Straight
Under Head Length: Between 1.022 inches and 1.042 inches
Diameter: Between 0.122 inches and 0.124 inches
