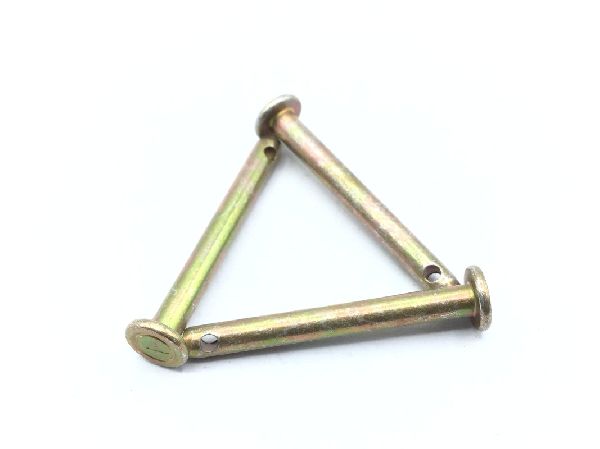

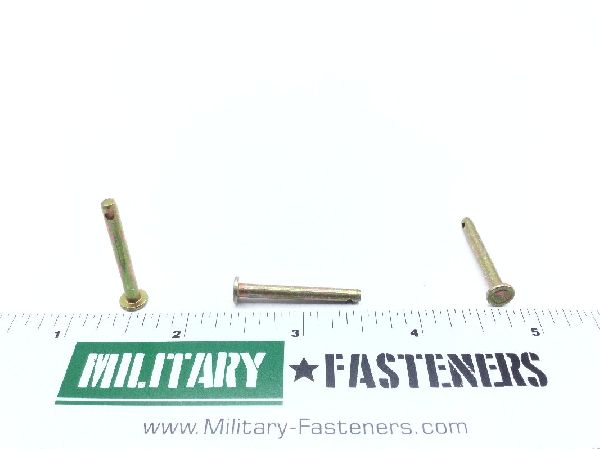

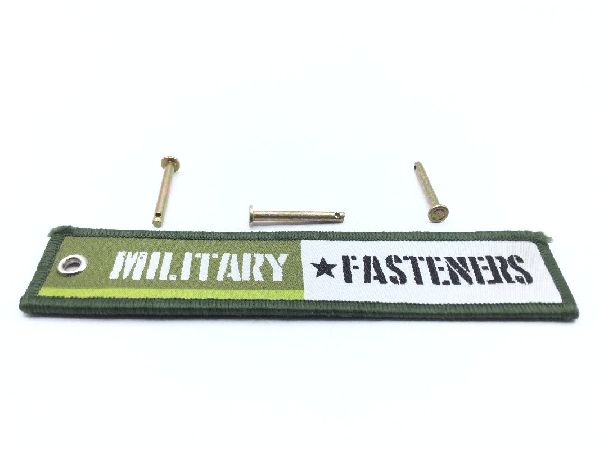

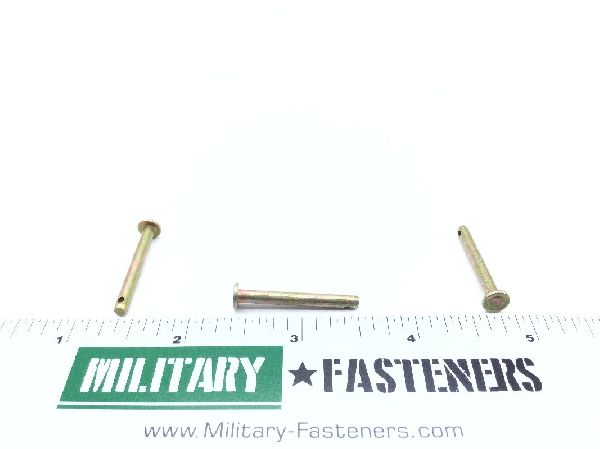

MS20392-1C31 Straight Headed Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.24.0000

Price per Unit $1.63

Units per Pack 25

Price per Pack $40.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $40.75

Add item to quote

Head Style

Pan no. 2 (r1 not required in item description)

Material

Steel

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Chamfer Angle: Between 14.5 degrees and 15.5 degrees
Chamfer Length: 0.062 inches
Distance From Centerline Of Hole To End Of Pin: 0.091 inches
First Hole Diameter: Between 0.06 inches and 0.08 inches
Hardness Rating: 26.5 rockwell c and 32.0 rockwell r
Height: Between 0.03 inches and 0.062 inches
Hole Arrangement Style: One end drilled
Material Specification: Il-s-8695 military specification 10th material response or il-s-6758 military specification 10th material response or mil-s-6050 military specification 3rd material response
Shear Strength: 1840 double pound
Special Features: The shank end of pin may have either a chamfer or radius at the option of the vendor
Style Designator: Straight
Under Head Length: Between 1.085 inches and 1.105 inches
Diameter: Between 0.122 inches and 0.124 inches
Head Diameter: Between 0.234 inches and 0.266 inches
