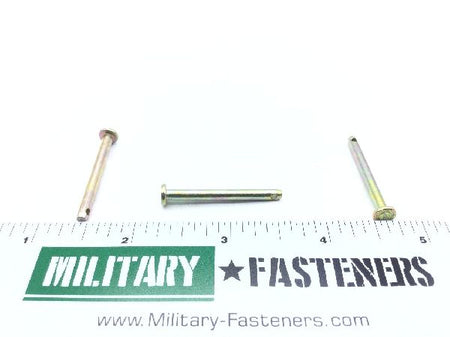

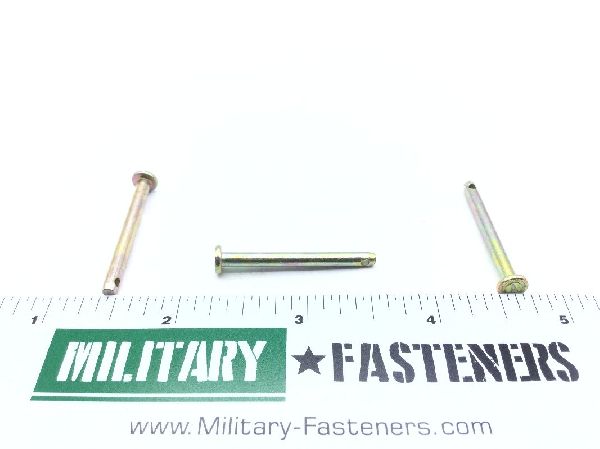

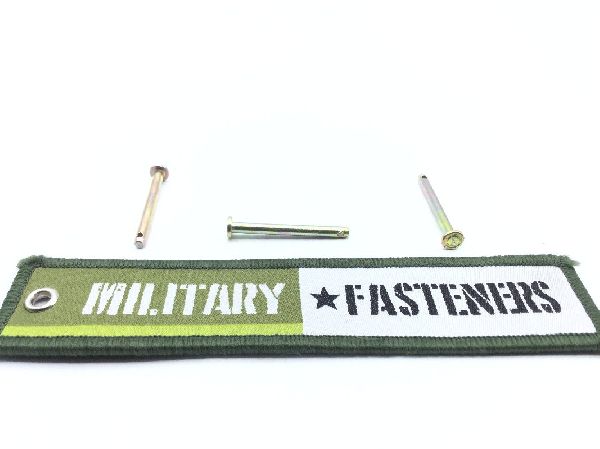

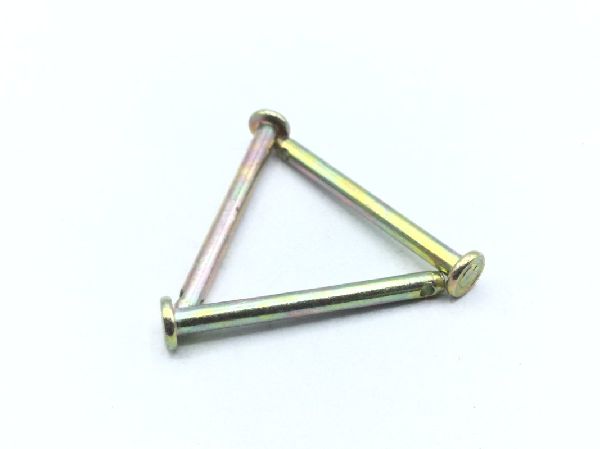

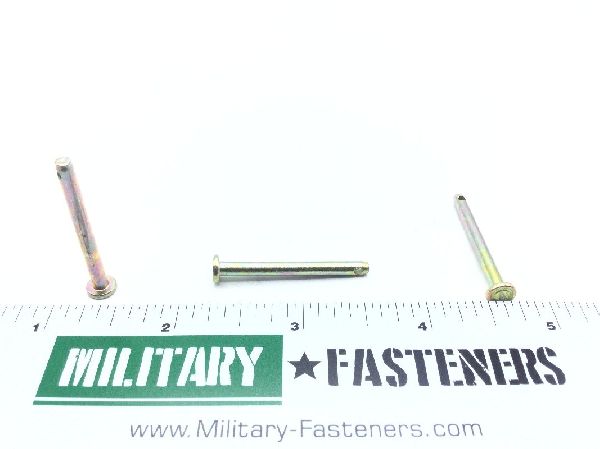

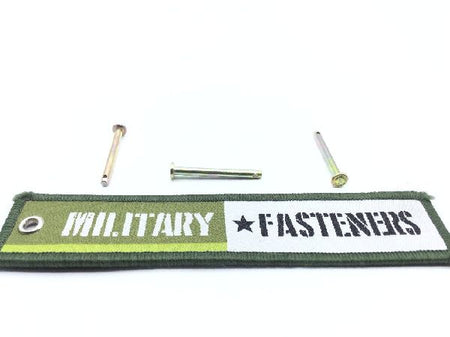

MS20392-1C37 Straight Headed Pin

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan no. 2 (r1 not required in item description)

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Chamfer Length: 0.062 inches
Distance From Centerline Of Hole To End Of Pin: 0.091 inches
First Hole Diameter: Between 0.06 inches and 0.08 inches
Hardness Rating: 26.5 rockwell c and 32 rockwell c
Height: Between 0.030 inches and 0.062 inches
Hole Arrangement Style: One end drilled
Material Specification: Ams 6300 assn standard 1st material response or mil-s-6758 military specification 2nd material response or mil-s-6050 military specification 3rd material response
Pin Chamfer Angle: Between 14.5 degrees and 15.5 degrees
Pin Head Diameter: Between 0.234 inches and 0.266 inches
Shear Strength: 1840 double pound
Special Features: The shank end may have either a chamfer or radius at the option of the vendor
Style Designator: Straight
Under Head Length: Between 1.272 inches and 1.292 inches
Diameter: Between 0.122 inches and 0.124 inches
