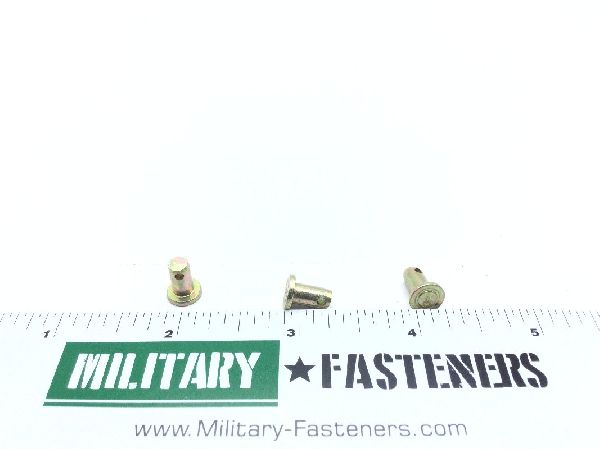

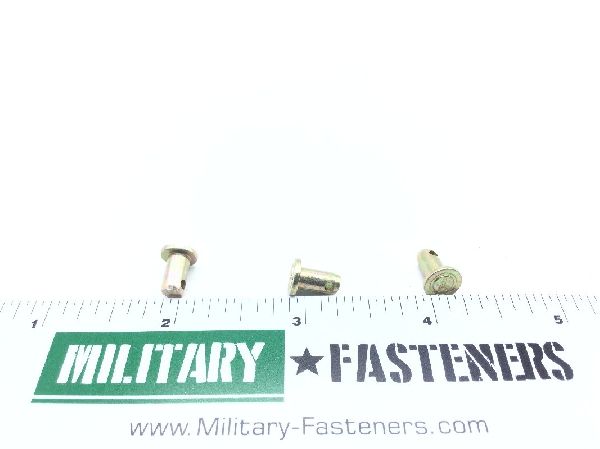

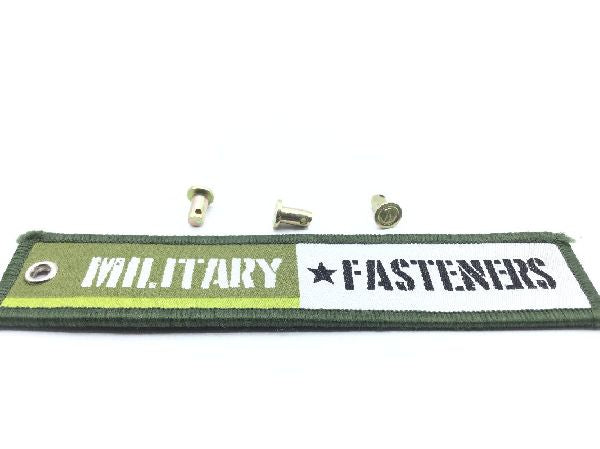

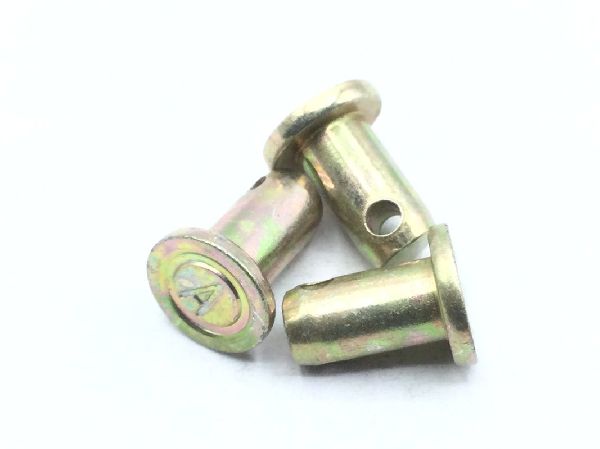

MS20392-2C7 Straight Headed Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $1.18

Units per Pack 25

Price per Pack $29.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $29.50

Add item to quote

Head Style

Pan no. 2 (r1 not required in item description)

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Chamfer Length: 0.062 inches
Distance From Centerline Of Hole To End Of Pin: 0.088 inches
First Hole Diameter: Between 0.066 inches and 0.086 inches
Hardness Rating: 26.5 rockwell c and 32.0 rockwell c
Height: Between 0.030 inches and 0.062 inches
Hole Arrangement Style: One end drilled
Material Specification: Ams 6300 assn standard 1st material response or mil-s-6758 military specification 2nd material response or mil-s-6050 military specification 3rd material response
Pin Chamfer Angle: Between 14.5 degrees and 15.5 degrees
Pin Head Diameter: Between 0.296 inches and 0.328 inches
Shear Strength: 4140 double pound
Special Features: Shank end may have either a chamfer or radius at the option of the vendor
Style Designator: Straight
Under Head Length: Between 0.335 inches and 0.355 inches
Diameter: Between 0.184 inches and 0.186 inches
