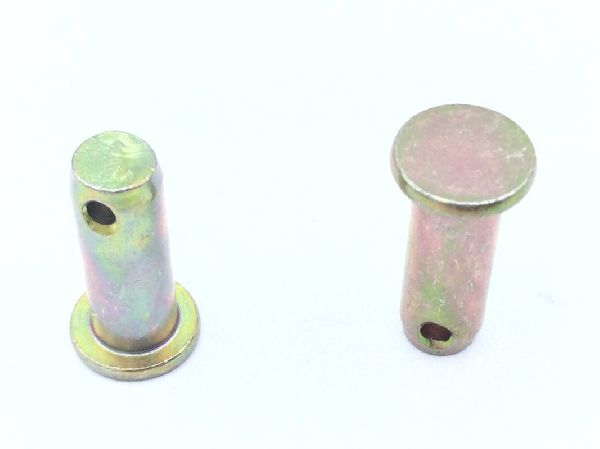

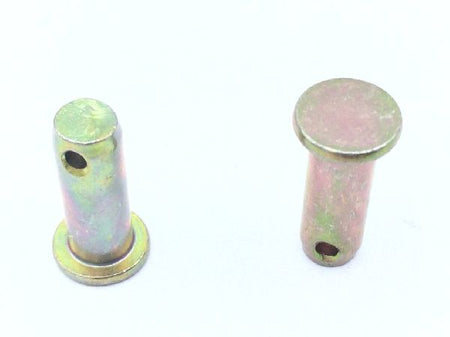

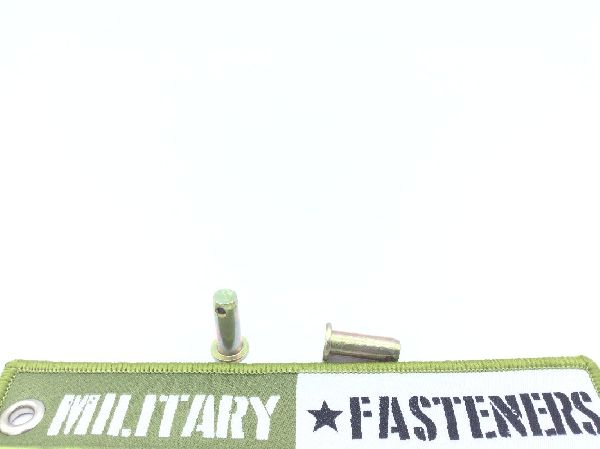

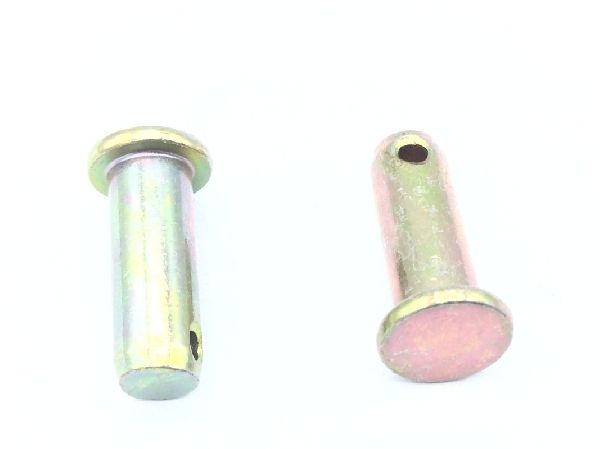

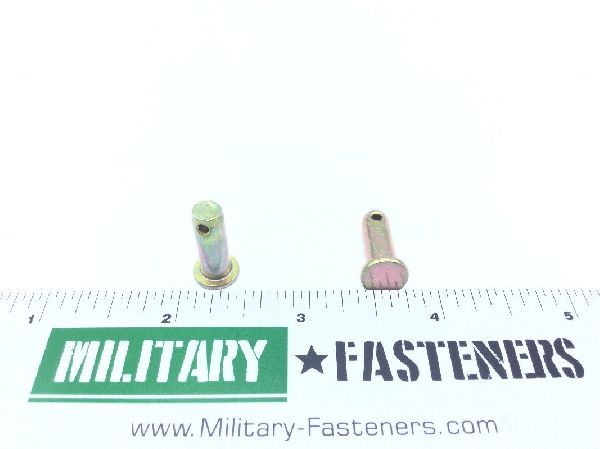

MS20392-3C17 Straight Head Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan no. 2 (r1 not required in item description)

Material

Steel

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Chamfer Length: 0.062 inches
Distance From Centerline Of Hole To End Of Pin: 0.103 inches
First Hole Diameter: Between 0.066 inches and 0.086 inches
Hardness Rating: 26.5 rockwell c and 32.0 rockwell c
Height: 0.062 inches
Hole Arrangement Style: One end drilled
Material Specification: Ams 6300 assn standard 1st material response or mil-s-6758 military specification 2nd material response or mil-s-8630 military specification 3rd material response
Pin Chamfer Angle: 15.0 degrees
Pin Head Diameter: 0.375 inches
Shear Strength: 7360 double pound
Style Designator: Straight
Under Head Length: Between 0.662 inches and 0.682 inches
Diameter: Between 0.246 inches and 0.248 inches
