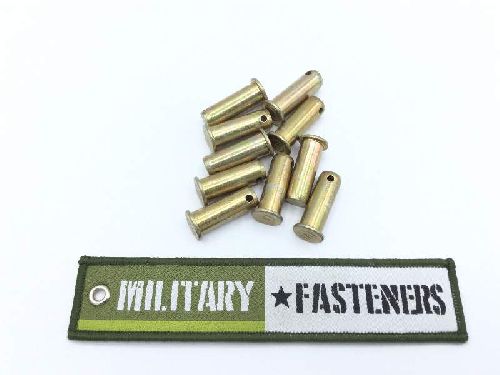

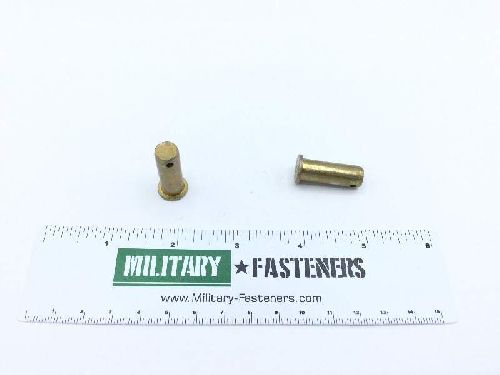

MS20392-5C27 Straight Headed Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.24.0000

Price per Unit $47.05

Units per Pack 1

Price per Pack $47.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $47.05

Add item to quote

Head Style

Pan no. 2 (r1 not required in item description)

Material

Steel comp 4037 or steel comp 4130 or steel comp 8630

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Chamfer Length: 0.078 inches
Distance From Centerline Of Hole To End Of Pin: 0.135 inches
First Hole Diameter: Between 0.096 inches and 0.116 inches
Hardness Rating: 26.5 rockwell c and 32.0 rockwell c
Height: 0.062 inches
Hole Arrangement Style: One end drilled
Material Specification: Mil-s-8695 military specification 1st material response or mil-s-6758 military specification 2nd material response or mil-s-6050 military specification 3rd material response
Pin Chamfer Angle: 15.0 degrees
Pin Head Diameter: 0.500 inches
Style Designator: Straight
Under Head Length: 1.032 inches
Diameter: Between 0.371 inches and 0.373 inches
