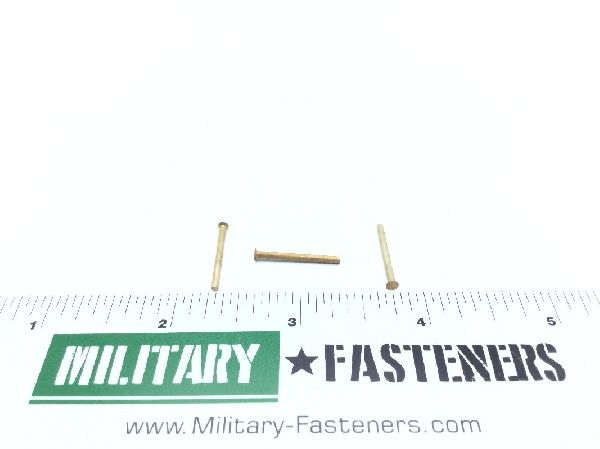

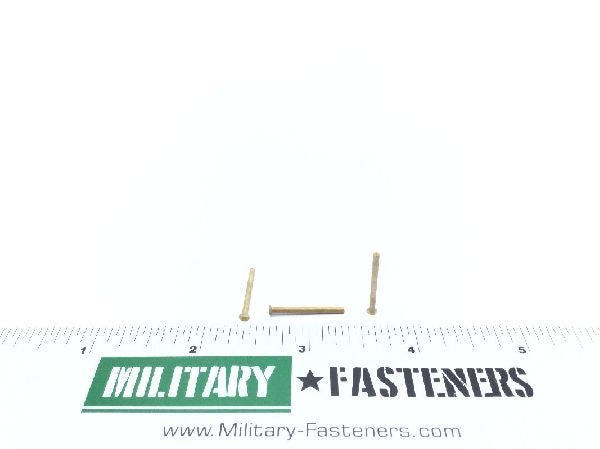

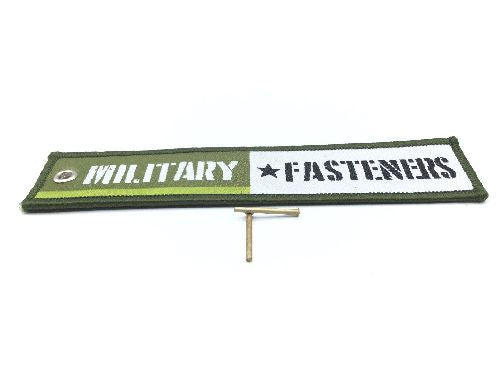

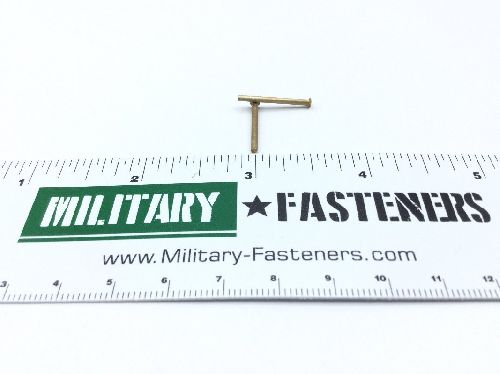

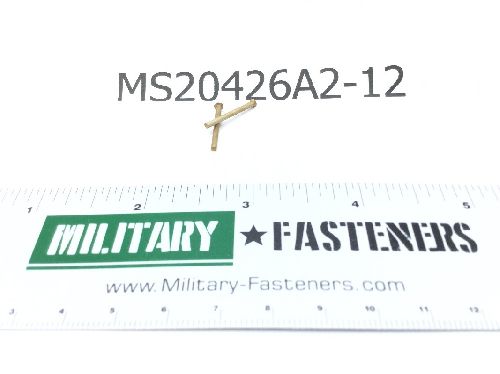

MS20426A2-12 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $0.07

Units per Pack 1000

Price per Pack $70.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1000

Total Unit Quantity:

Total Packs 1

Total Price $70.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 1100

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.740 inches and 0.760 inches
Head Major Diameter: 0.118 inches
Heat Treatment: Annealed
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.061 inches and 0.065 inches
Shank Style: Straight w/radius chamfered tip
