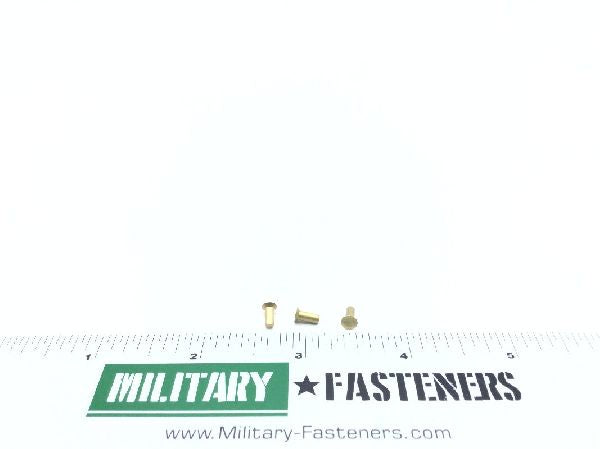

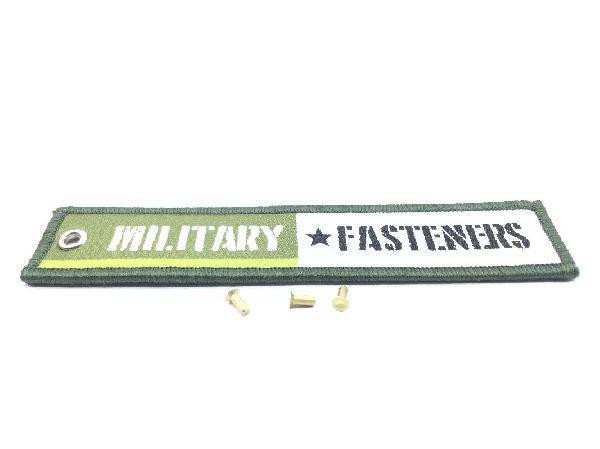

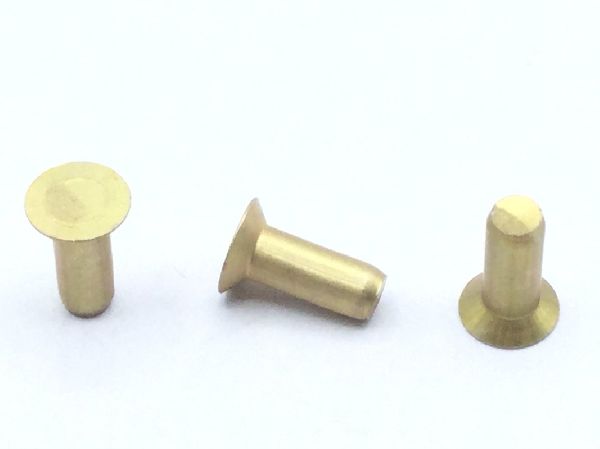

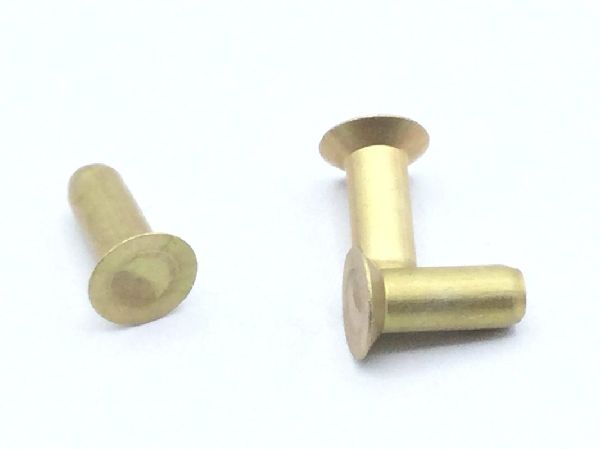

MS20426A3-4 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $87.24

Units per Pack 1

Price per Pack $87.24

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $87.24

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: 100.0 degrees
Criticality Code Justification: Supp
Fastener Length: Between 0.240 inches and 0.260 inches
Head Major Diameter: Between 0.175 inches and 0.183 inches
Heat Treatment: T-4 solution heat treated
Iii Supplementary Features: Flight safety critical
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.093 inches and 0.097 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
Special Features: With a diameter of 0.030 inches rivet has 0.020 inch depth dimple in head
