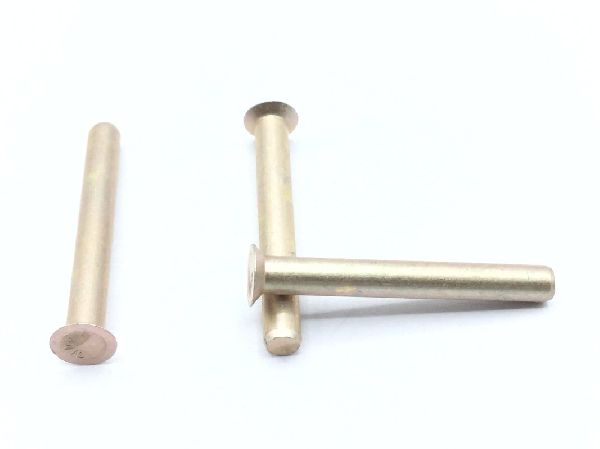

MS20426A4-16 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $55.37

Units per Pack 1

Price per Pack $55.37

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $55.37

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees with or without chamfer)

Material

Aluminum alloy 1100

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.990 in and 1.010 in
Grip Length: 0.812 inches
Head Major Diameter: Between 0.221 in and 0.229 in
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight w/radius chamfered tip
