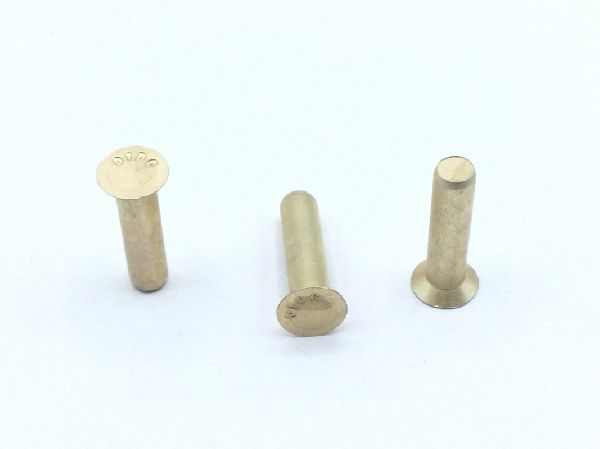

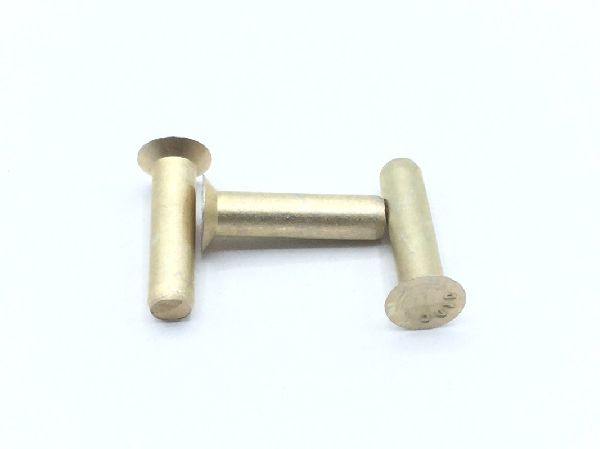

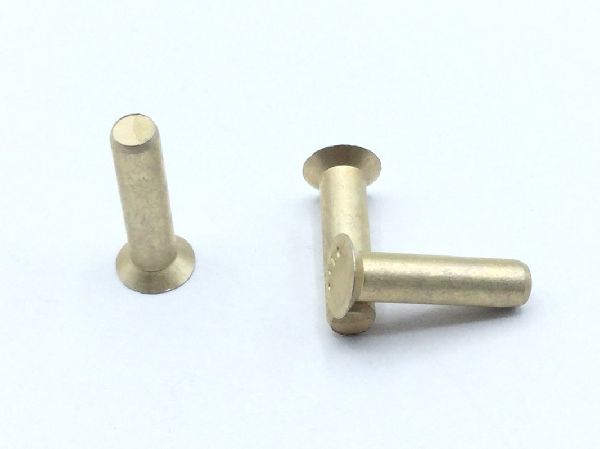

MS20426A4-8 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 1100

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.490 inches and 0.510 inches
Grip Length: 0.302 mils and 0.322 centimeters
Head Major Diameter: Between 0.221 inches and 0.229 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight w/radius chamfered tip
