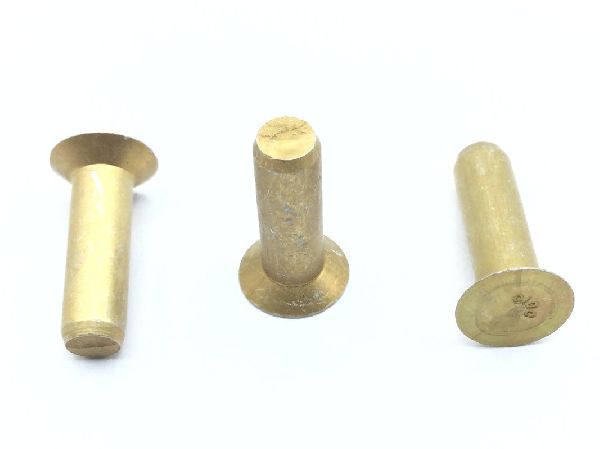

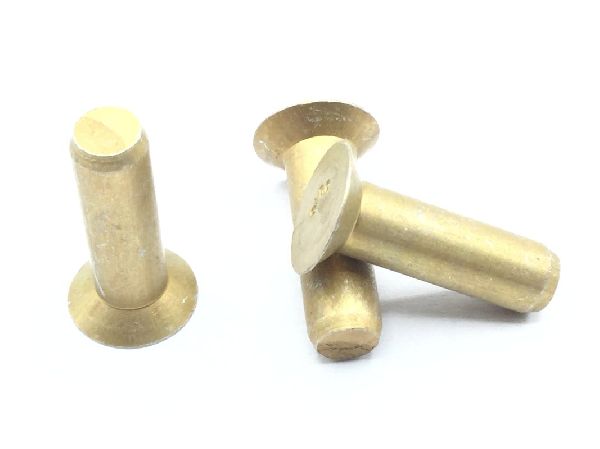

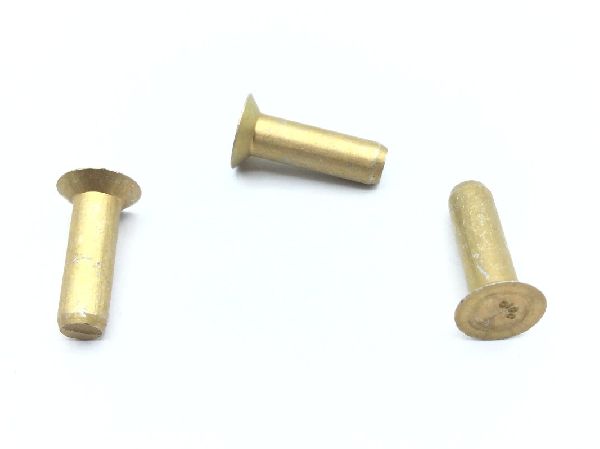

MS20426A6-10 solid rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $34.58

Units per Pack 1

Price per Pack $34.58

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $34.58

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 1100

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.615 inches and 0.635 inches
Grip Length: Between 0.334 inches and 0.354 inches
Head Major Diameter: Between 0.349 inches and 0.357 inches
Material Specification: Qq-a-430 federal specification single material response
Pieces Per Pound: 530
Shank Diameter: Between 0.186 inches and 0.190 inches
Shank Style: Straight
