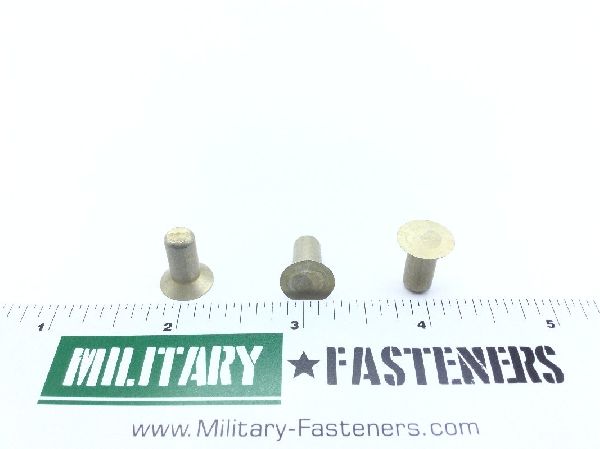

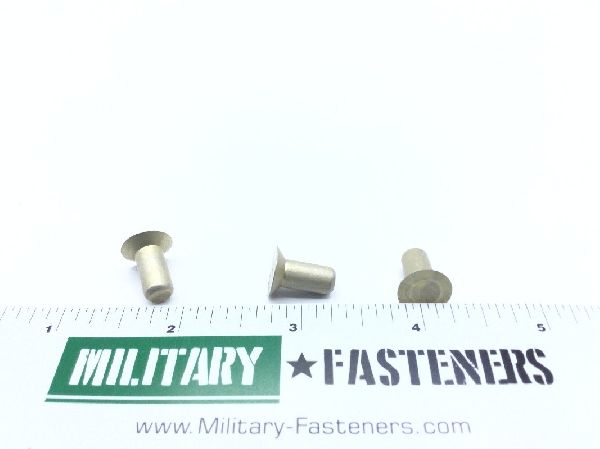

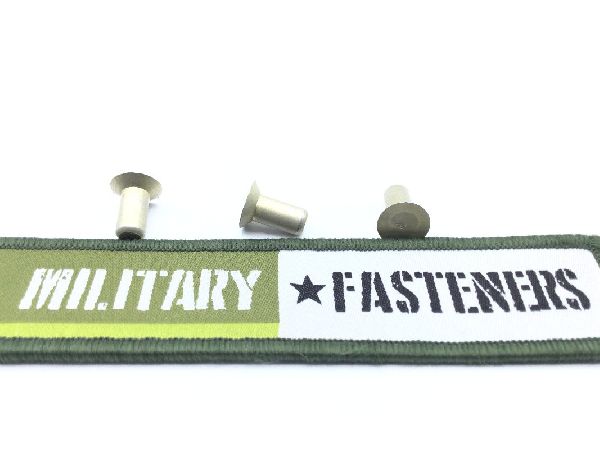

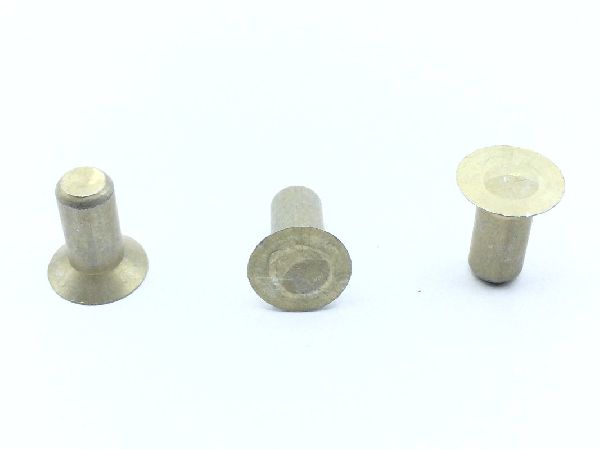

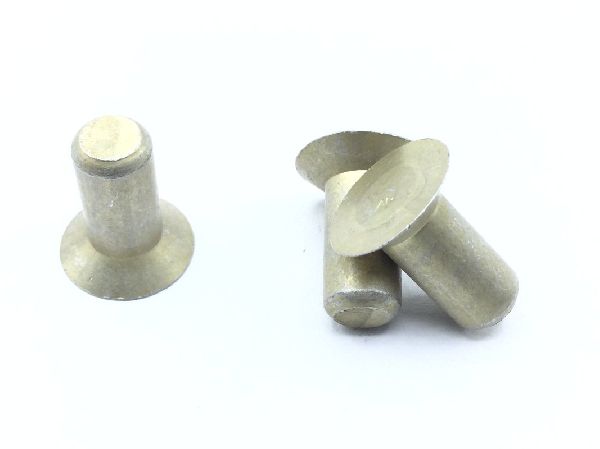

MS20426A8-9 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $0.26

Units per Pack 100

Price per Pack $26.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $26.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 1100

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.552 inches and 0.572 inches
Grip Length: 0.187 inches
Head Major Diameter: Between 0.472 inches and 0.480 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.249 inches and 0.253 inches
Shank Style: Straight w/radius chamfered tip
