MS20426AD10-16 Solid Rivet

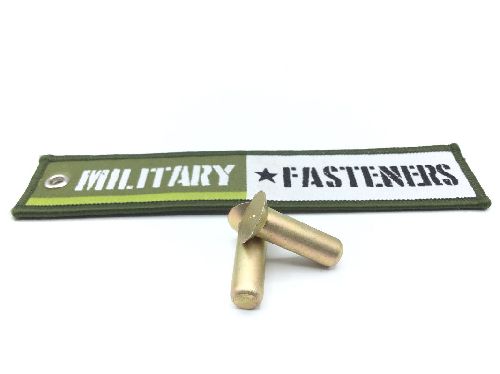

MS20426AD10-16 Solid Rivet (2)

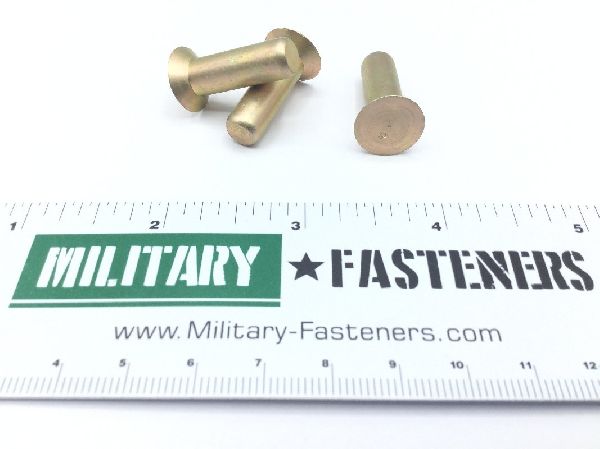

MS20426AD10-16 Solid Rivet (3)

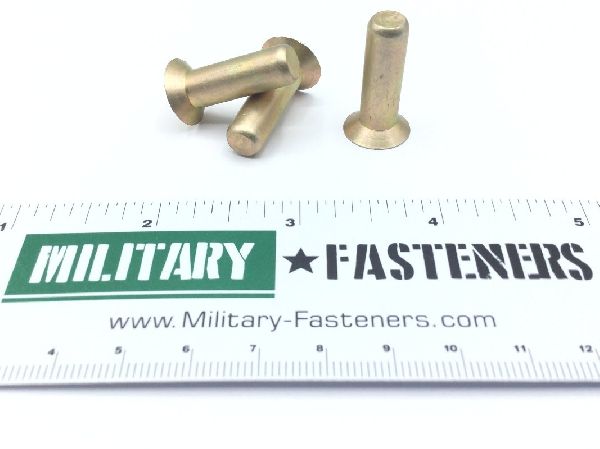

MS20426AD10-16 Solid Rivet (4)

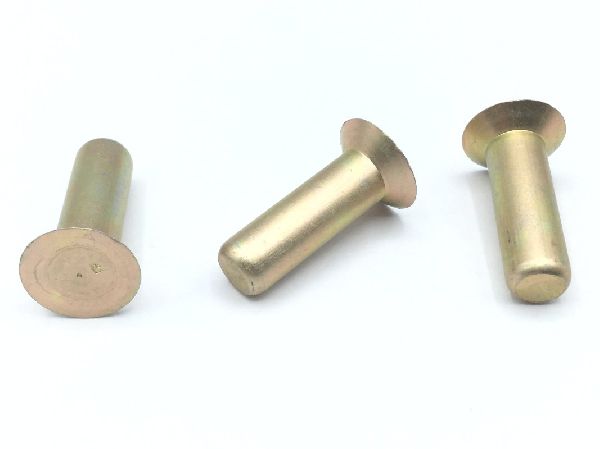

MS20426AD10-16 Solid Rivet (5)

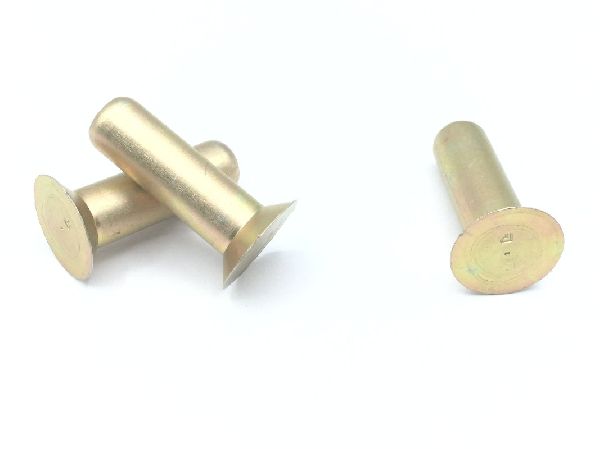

MS20426AD10-16 Solid Rivet (6)

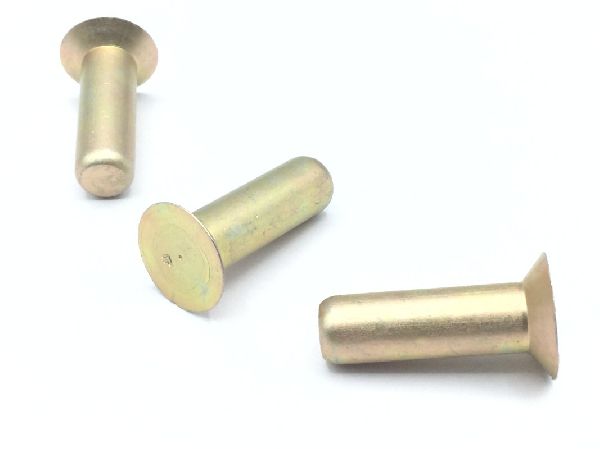

MS20426AD10-16 Solid Rivet (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20426AD10-16 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $88.14

Units per Pack 1

Price per Pack $88.14

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $88.14

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.990 inches and 1.010 inches
Grip Length: 0.531 inches
Head Major Diameter: Between 0.560 inches and 0.568 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.311 inches and 0.315 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
