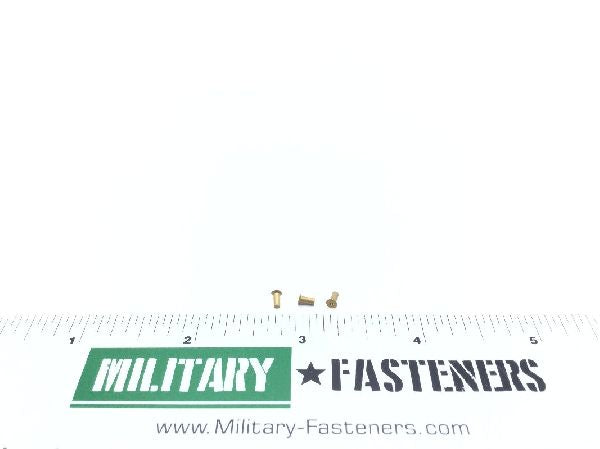

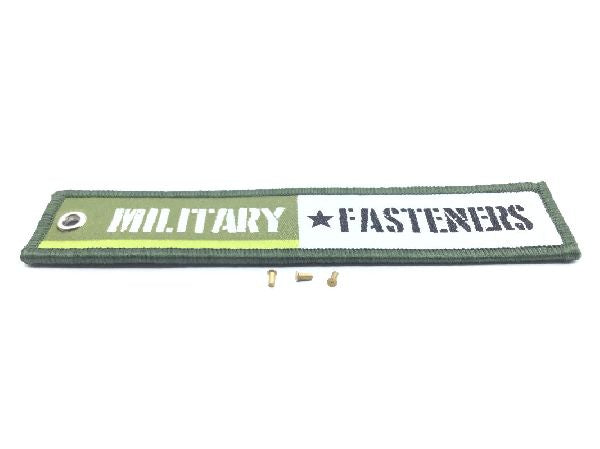

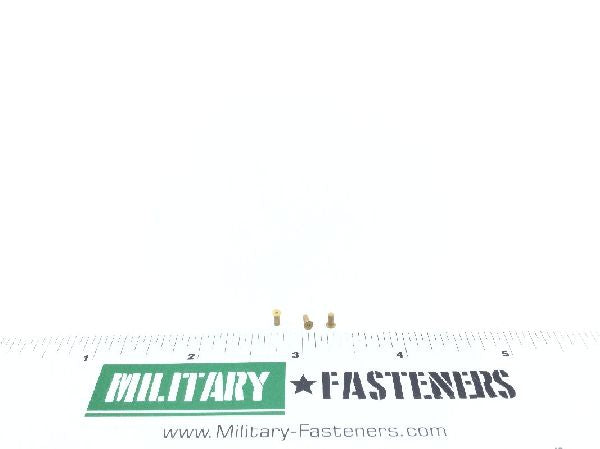

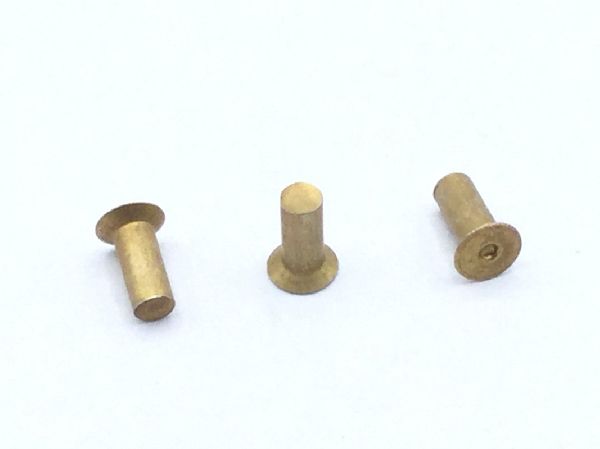

MS20426AD2-2-5 Solid Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Aluminum alloy 2117
Surface Treatment
Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response
Countersink Angle
Between 99.5 degrees and 100.5 degrees
Fastener Length
Between 0.146 inches and 0.166 inches
Head Major Diameter
Between 0.110 inches and 0.118 inches
Heat Treatment
T-4 solution heat treated
Material Specification
Qq-a-430 federal specification single material response
Shank Diameter
Between 0.061 inches and 0.065 inches
Shank Style
Straight
