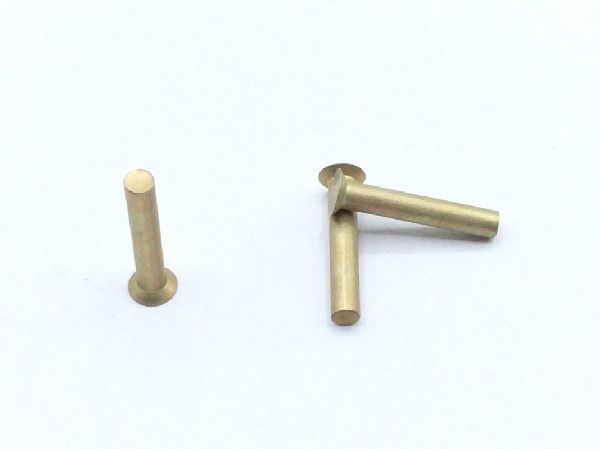

MS20426AD2-6 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $129.94

Units per Pack 1

Price per Pack $129.94

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $129.94

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Surface Treatment

Cl 1a military specification single treatment response mil-c-5541

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.365 inches and 0.385 inches
Grip Length: 0.281 inches
Head Major Diameter: Between 0.110 inches and 0.118 inches
Identification Code Color: Gold
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.061 inches and 0.065 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
