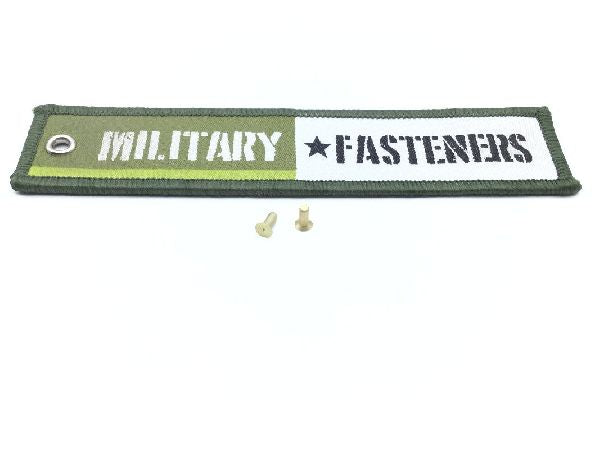

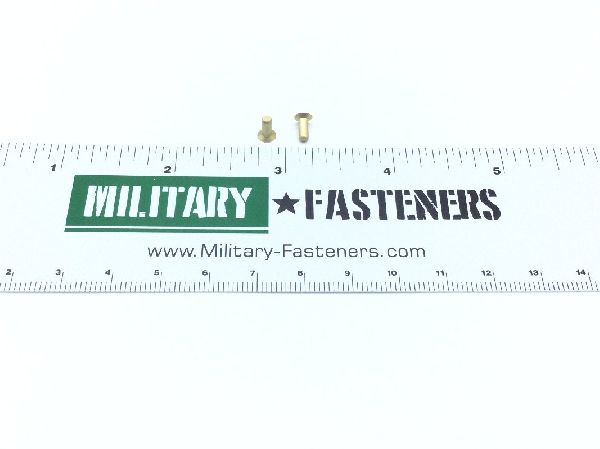

MS20426AD3-4 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: 100 degrees
Criticality Code Justification: Supp
Fastener Length: Between 0.24 inches and 0.26 inches
Head Major Diameter: Between 0.175 inches and 0.183 inches
Heat Treatment: T-4 solution heat treated
Iii Supplementary Features: Flight safety critical
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.093 inches and 0.097 inches
Shank Style: Straight with radius chamfered tip
Shear Strength: 26000 single pounds per square inch
Special Features: With a diameter of 0.03 inches rivet has 0.02 inch depth dimple in head
