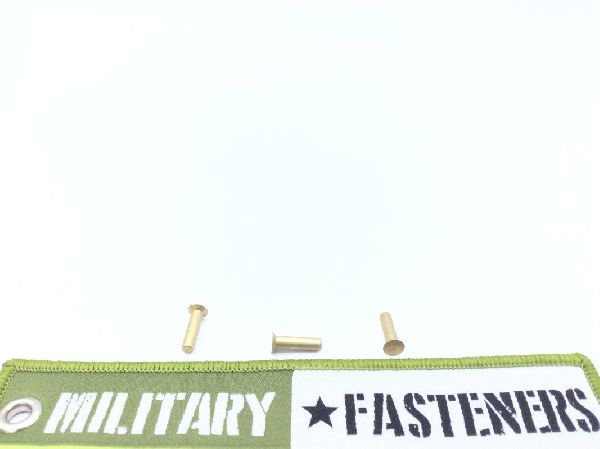

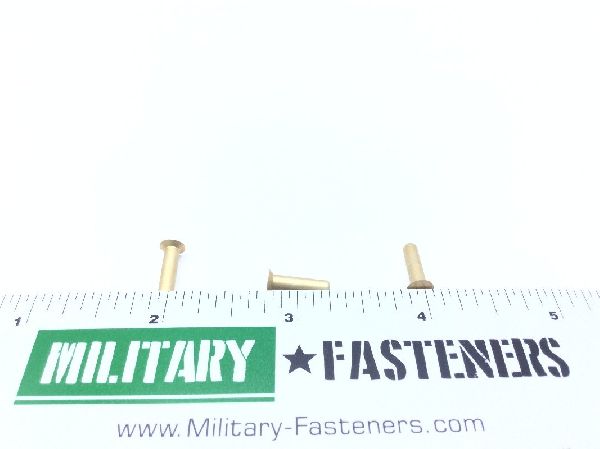

MS20426AD4-8 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $44.28

Units per Pack 1

Price per Pack $44.28

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $44.28

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Surface Treatment

Mil-c-5541 military specification 1st treatment response or mil-a-8625 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Criticality Code Justification: Feat
Fastener Length: Between 0.490 inches and 0.510 inches
Grip Length: Between 0.302 inches and 0.322 inches
Head Major Diameter: Between 0.221 inches and 0.229 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
Special Features: The item is a flight safety critical aircraft part (fscap).
