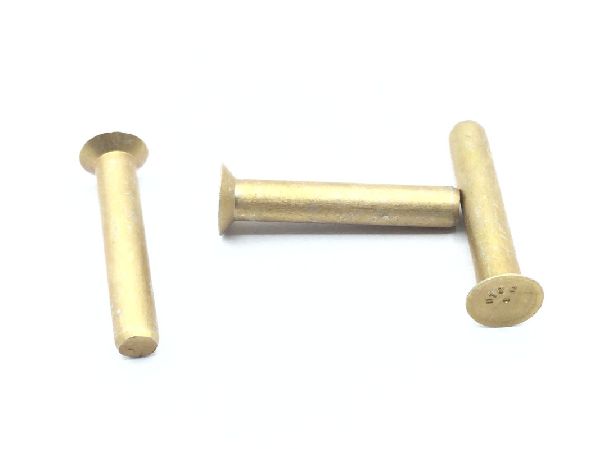

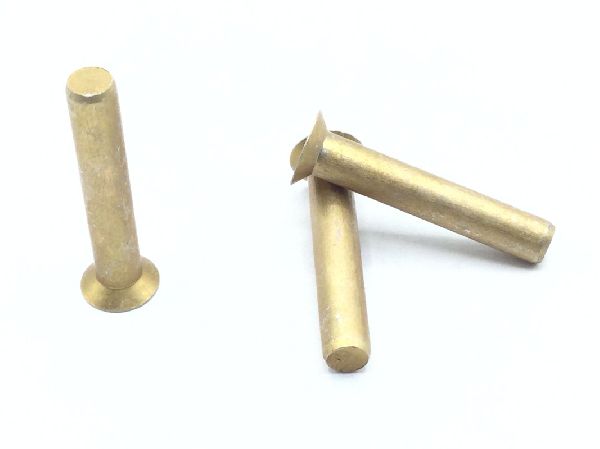

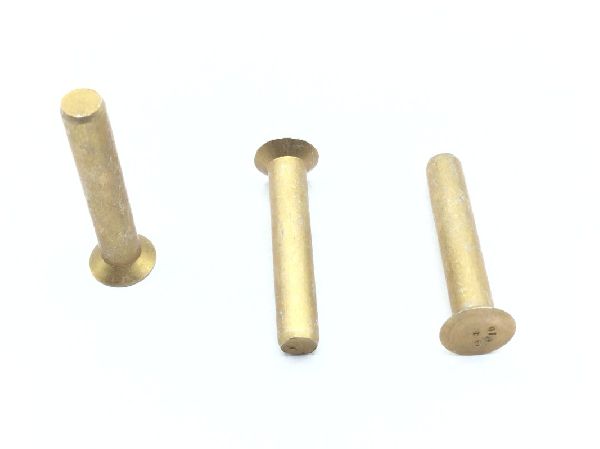

MS20426AD5-14 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.865 inches and 0.885 inches
Grip Length: 0.631 mils and 0.651 centimeters
Head Major Diameter: Between 0.282 inches and 0.290 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.155 inches and 0.159 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
