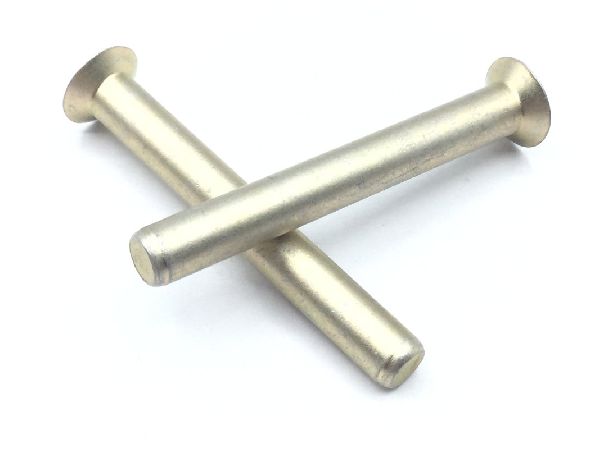

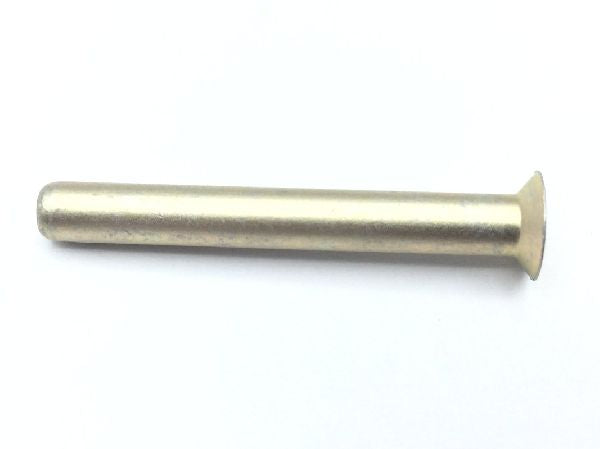

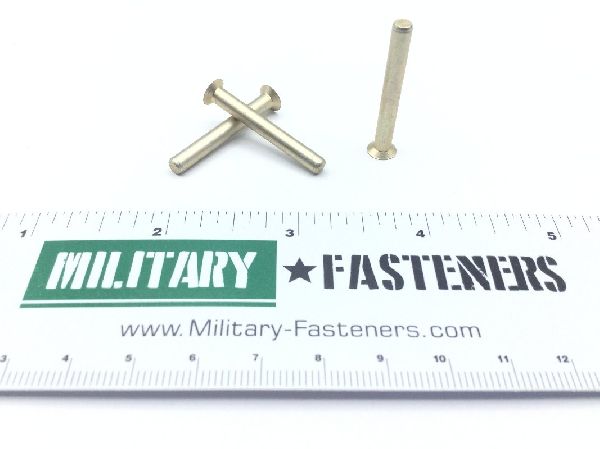

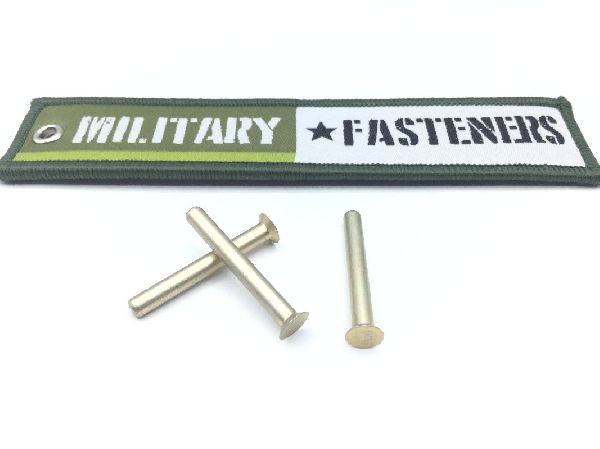

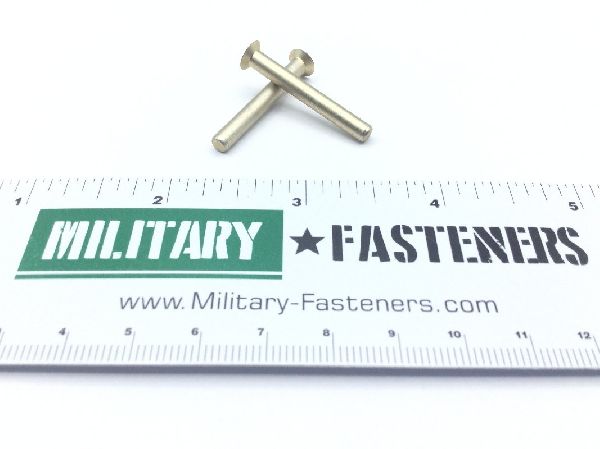

MS20426AD5-20 Solid Rivet
MS20426AD5-20 Solid Rivet (2)
MS20426AD5-20 Solid Rivet (3)
MS20426AD5-20 Solid Rivet (4)
MS20426AD5-20 Solid Rivet (5)
MS20426AD5-20 Solid Rivet
MS20426AD5-20 Solid Rivet (2)
MS20426AD5-20 Solid Rivet (3)
MS20426AD5-20 Solid Rivet (4)
MS20426AD5-20 Solid Rivet (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20426AD5-20 Solid Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Price per Unit $47.95
Units per Pack 1
Price per Pack $47.95
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $47.95
Add item to quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Aluminum alloy 2117
Countersink Angle
100.0 degrees
Fastener Length
Between 1.240 inches and 1.260 inches
Head Major Diameter
Between 0.282 inches and 0.290 inches
Material Specification
T4 federal specification single material response alloy 2117 qq-a-430
Shank Diameter
Between 0.155 inches and 0.159 inches
Shank Style
Straight w/radius chamfered tip
