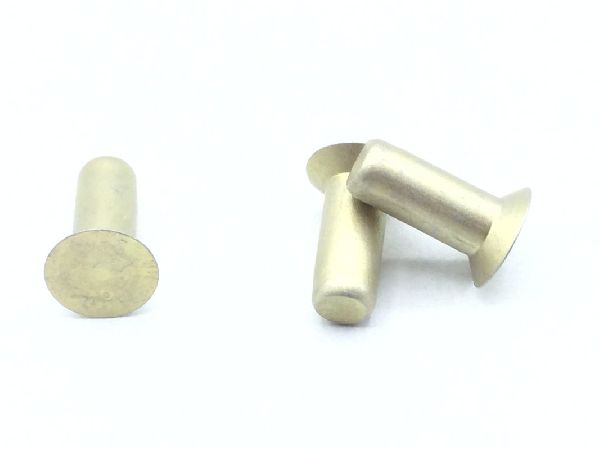

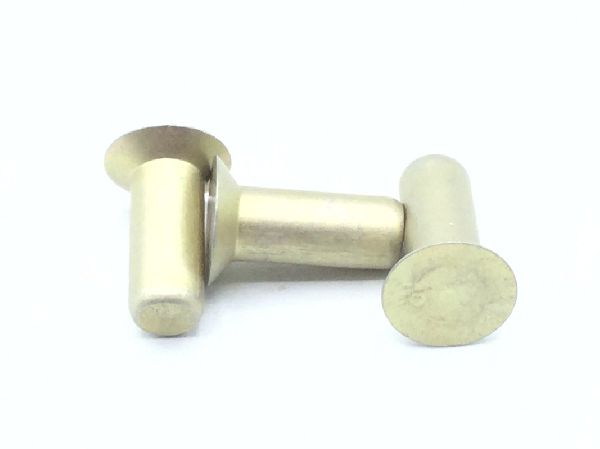

MS20426AD5-6.5 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $42.89

Units per Pack 1

Price per Pack $42.89

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $42.89

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.396 inches and 0.416 inches
Head Major Diameter: 0.290 inches
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.155 inches and 0.159 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
