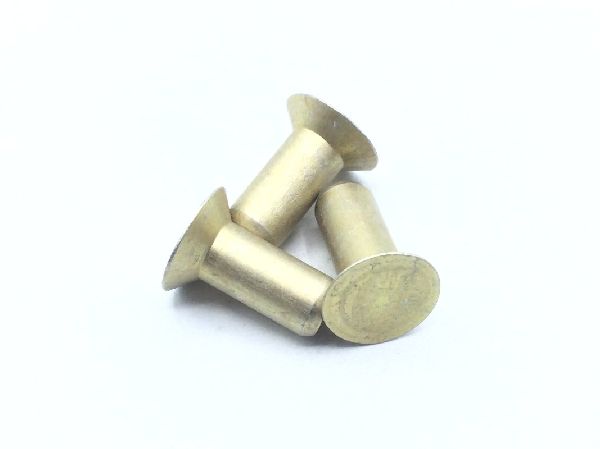

MS20426AD6-7 Solid Rivet

MS20426AD6-7 Solid Rivet (2)

MS20426AD6-7 Solid Rivet (3)

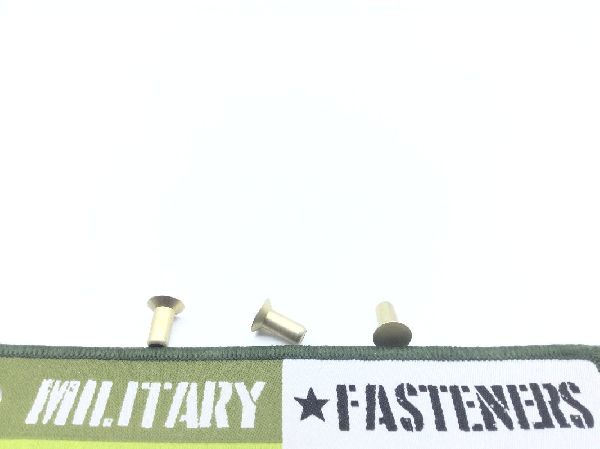

MS20426AD6-7 Solid Rivet (4)

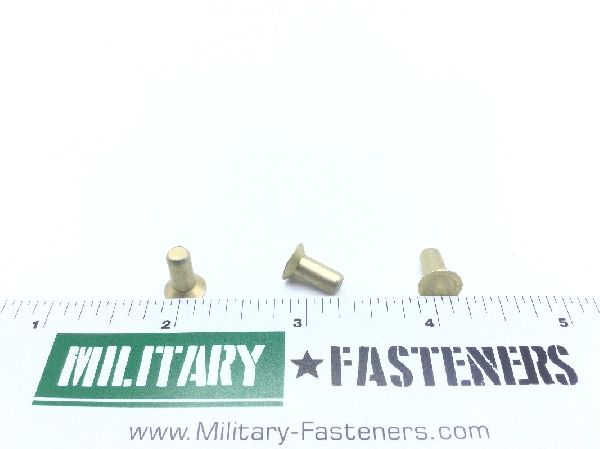

MS20426AD6-7 Solid Rivet (5)

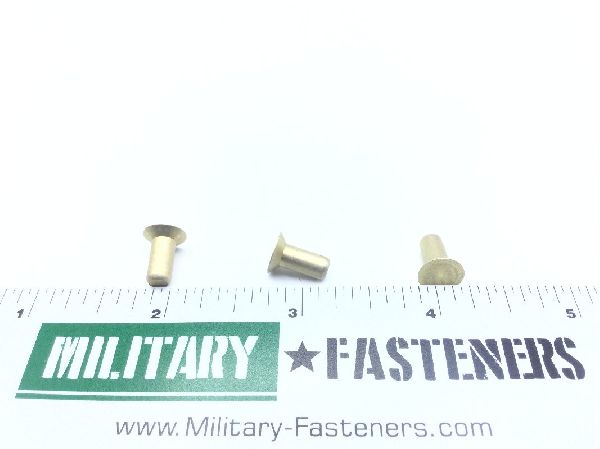

MS20426AD6-7 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20426AD6-7 Solid Rivet

NSN: 5320-00-117-7287
Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Flush (flat) countersunk

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.428 inches and 0.448 inches
Grip Length: 0.147 mils and 0.167 centimeters
Head Major Diameter: Between 0.349 inches and 0.357 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.186 inches and 0.190 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
