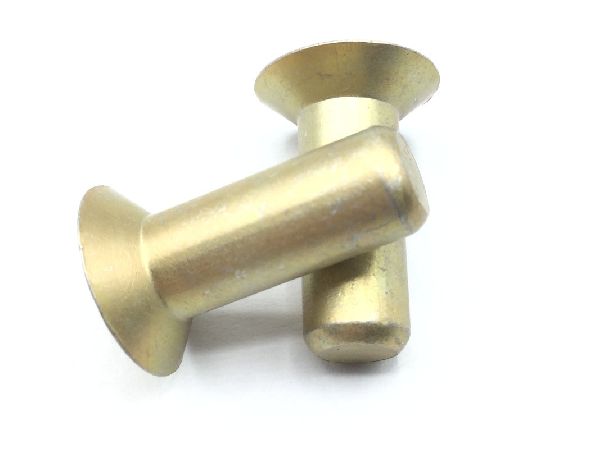

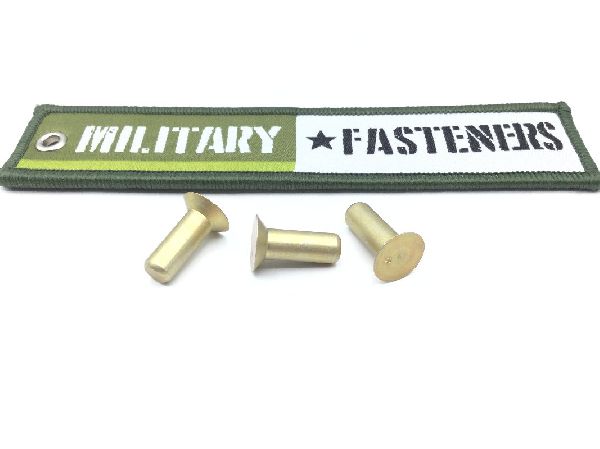

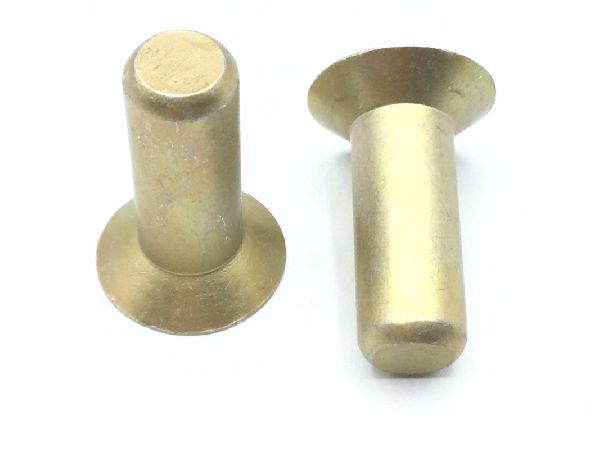

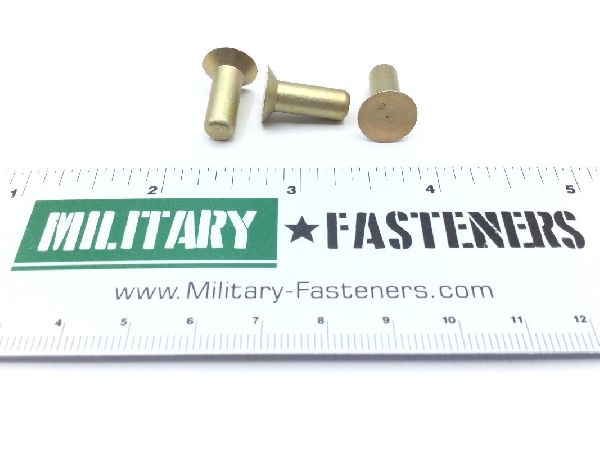

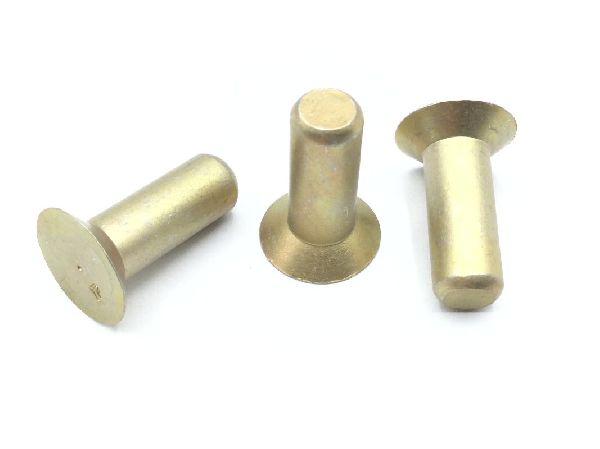

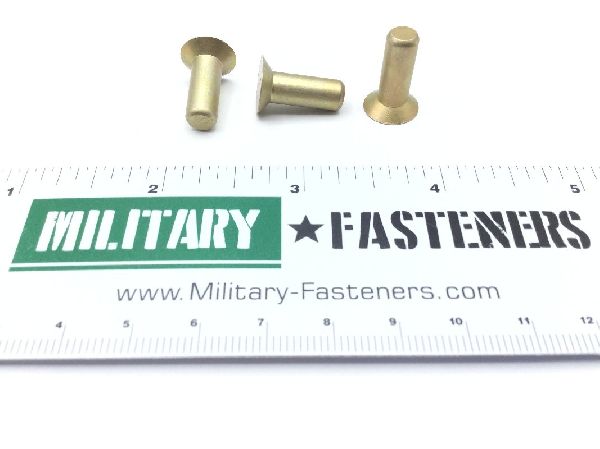

MS20426AD8-11 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $37.35

Units per Pack 1

Price per Pack $37.35

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $37.35

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2117

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.678 inches and 0.698 inches
Head Major Diameter: Between 0.472 inches and 0.480 inches
Heat Treatment: T-4 solution heat treated
Identification Code Color: Yellow
Material Specification: Qq-q-430 federal specification single material response
Shank Diameter: Between 0.249 inches and 0.253 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
Specification Data: 96906-ms20426 government specification
