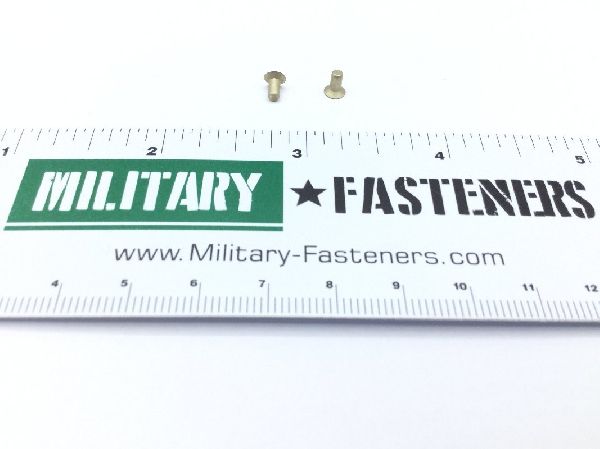

MS20426B3-3 Solid Rivet

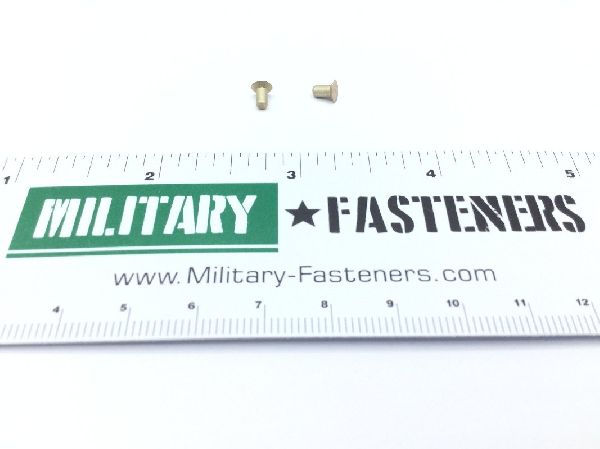

MS20426B3-3 Solid Rivet (2)

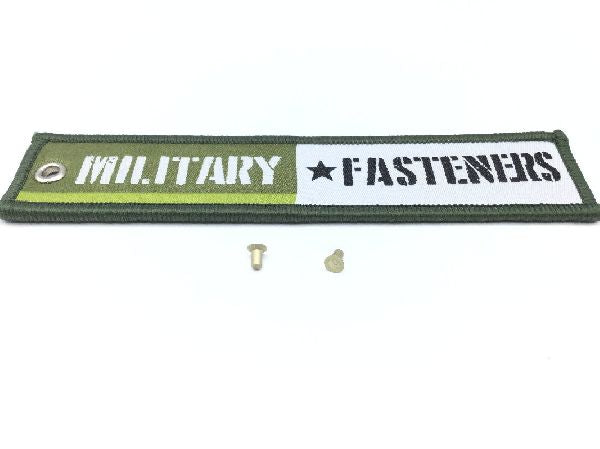

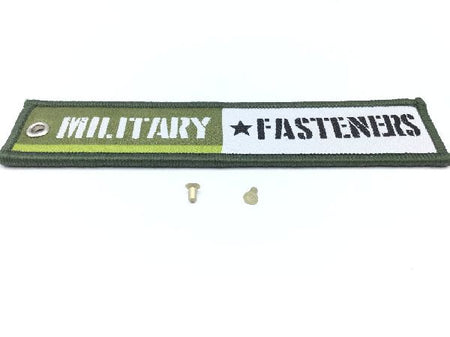

MS20426B3-3 Solid Rivet (3)
MS20426B3-3 Solid Rivet (4)
MS20426B3-3 Solid Rivet (5)
MS20426B3-3 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20426B3-3 Solid Rivet

Product Series
MS
ECCN
EAR99
Schedule
7318.23.0000
Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Aluminum alloy 5056
Surface Treatment
Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response
Countersink Angle
Between 99.5 degrees and 100.5 degrees
Fastener Length
Between 0.178 inches and 0.198 inches
Grip Length
0.037 mils and 0.057 centimeters
Head Major Diameter
Between 0.175 inches and 0.183 inches
Material Specification
Qq-a-430 federal specification single material response
Shank Diameter
Between 0.093 inches and 0.097 inches
Shank Style
Straight w/radius chamfered tip
Shear Strength
24000 single pounds per square inch
