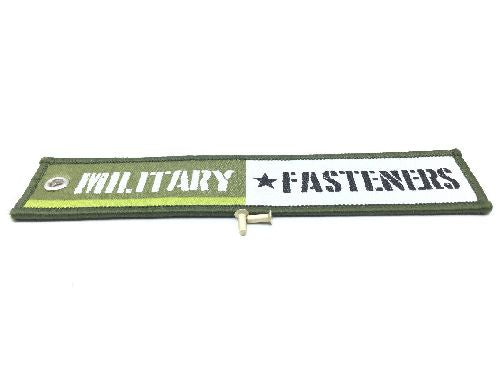

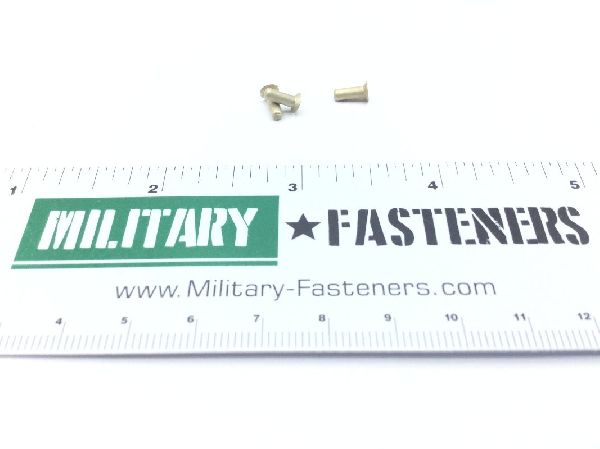

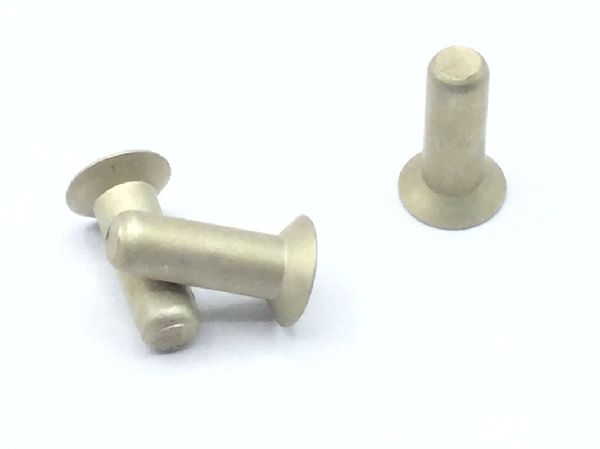

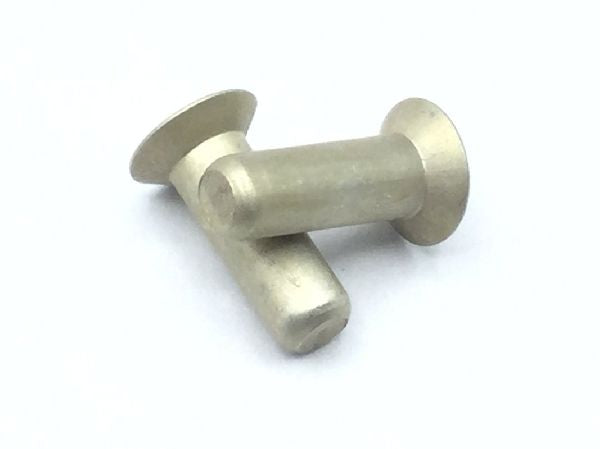

MS20426B3-4-5 Solid Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Price per Unit $0.04
Units per Pack 1000
Price per Pack $40.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1000

Total Unit Quantity:
Total Packs 1
Total Price $40.00
Add item to quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Aluminum alloy 5056
Countersink Angle
Between 99.5 degrees and 100.5 degrees
Fastener Length
Between 0.271 inches and 0.291 inches
Grip Length
0.150 centimeters
Head Major Diameter
Between 0.175 inches and 0.183 inches
Heat Treatment
H-32 strain hardened
Shank Diameter
Between 0.093 inches and 0.097 inches
Shank Style
Straight w/radius chamfered tip
Shear Strength
24000 single pounds per square inch
