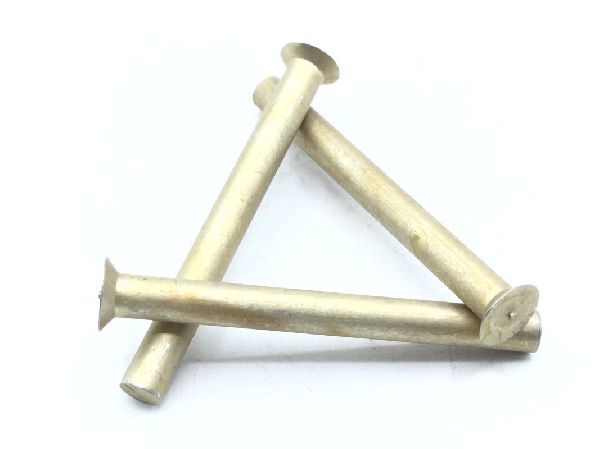

MS20426D4-20 Solid Rivet
MS20426D4-20 Solid Rivet (2)
MS20426D4-20 Solid Rivet (3)

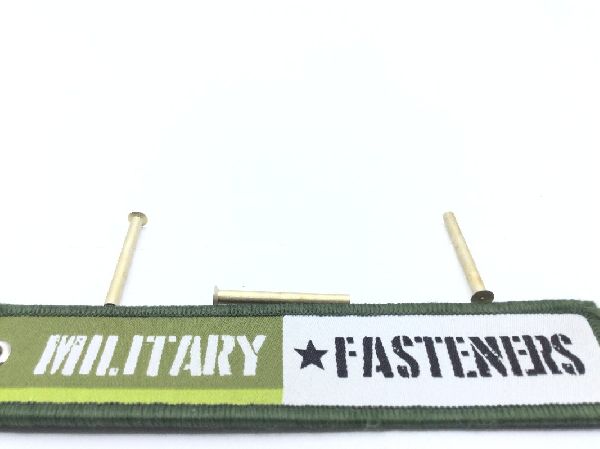

MS20426D4-20 Solid Rivet (4)

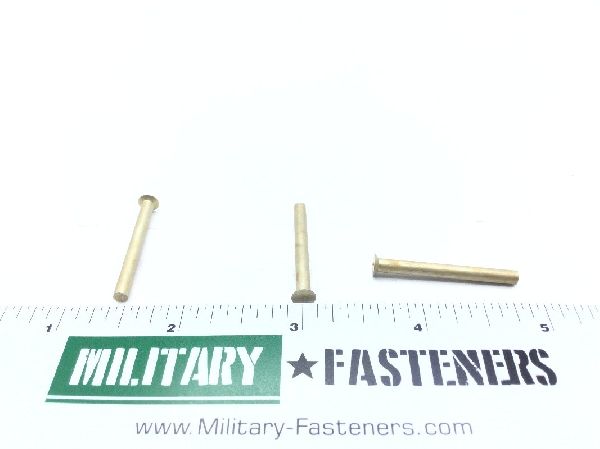

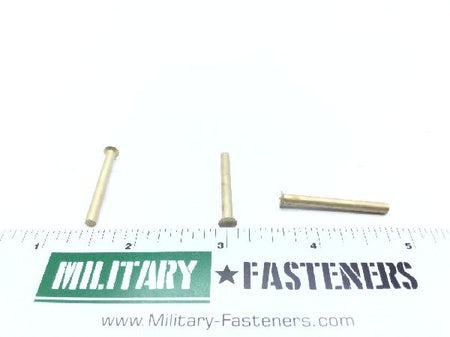

MS20426D4-20 Solid Rivet (5)

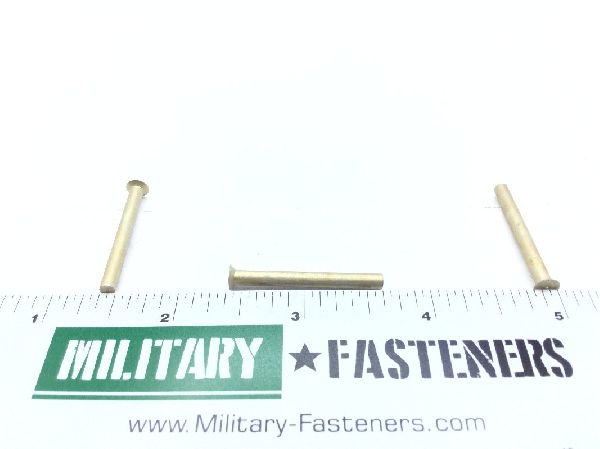

MS20426D4-20 Solid Rivet (6)
MS20426D4-20 Solid Rivet
MS20426D4-20 Solid Rivet (2)
MS20426D4-20 Solid Rivet (3)
MS20426D4-20 Solid Rivet (4)
MS20426D4-20 Solid Rivet (5)
MS20426D4-20 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20426D4-20 Solid Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Aluminum alloy 2017
Surface Treatment
Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response
Countersink Angle
Between 99.5 degrees and 100.5 degrees
Fastener Length
Between 1.240 inches and 1.260 inches
Grip Length
Between 1.052 inches and 1.072 inches
Head Major Diameter
Between 0.221 inches and 0.229 inches
Material Specification
Qq-a-430 federal specification single material response
Shank Diameter
Between 0.124 inches and 0.128 inches
Shank Style
Straight with radius chamfered tip
Shear Strength
33000 single pounds per square inch
