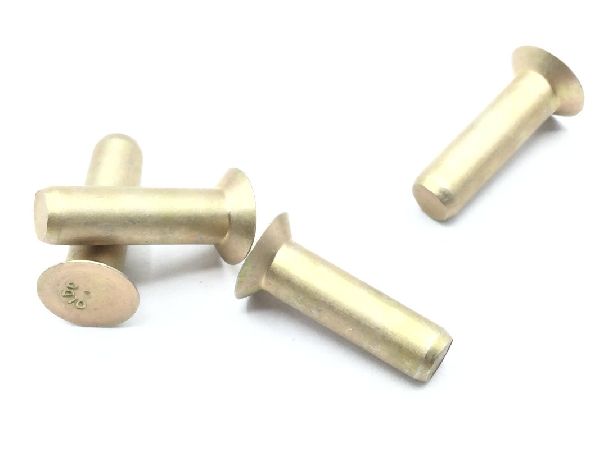

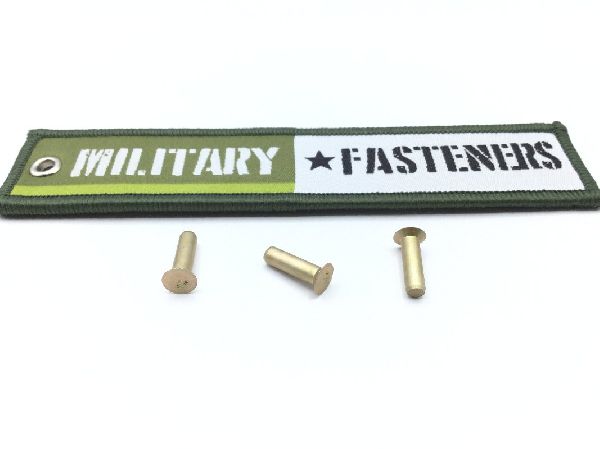

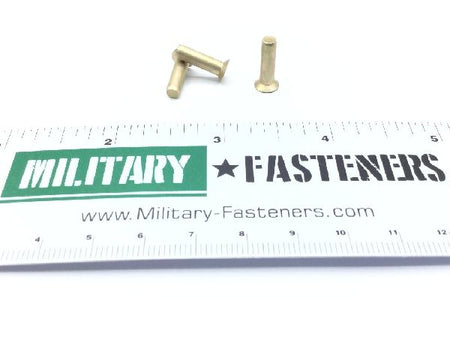

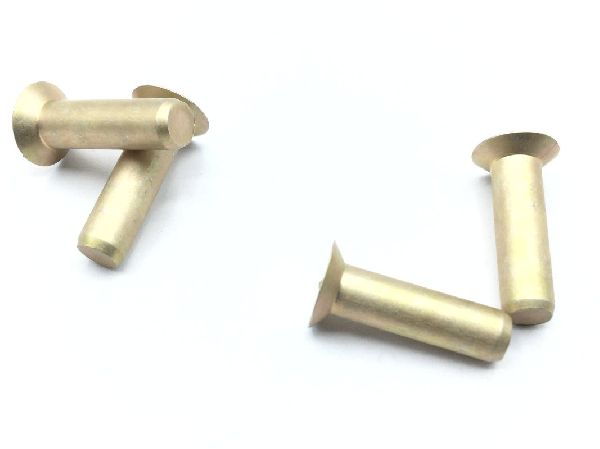

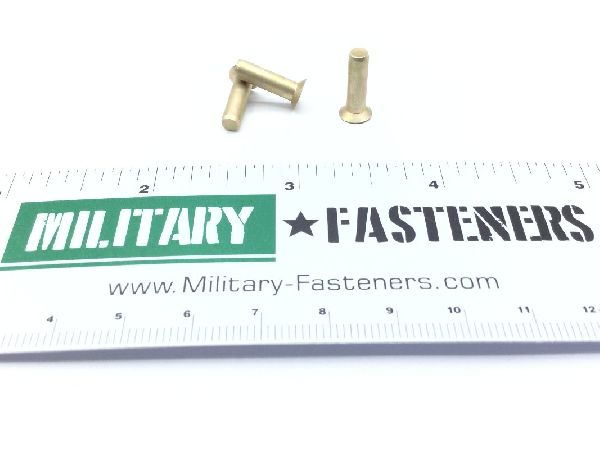

MS20426D5-9 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $52.00

Units per Pack 1

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2017

Chamfer Length: 0.039 inches
Countersink Angle: 100.0 degrees
Fastener Length: Between 0.552 inches and 0.572 inches
Grip Length: 0.318 mils and 0.338 centimeters
Head Height: 0.055 inches
Head Major Diameter: Between 0.282 inches and 0.290 inches
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.155 inches and 0.159 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 33000 single pounds per square inch
Test Data Document: Etc.).
