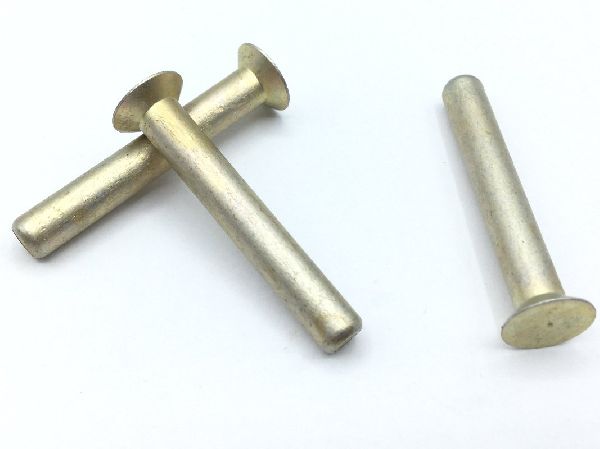

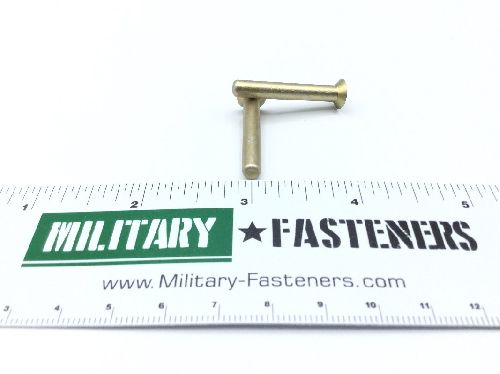

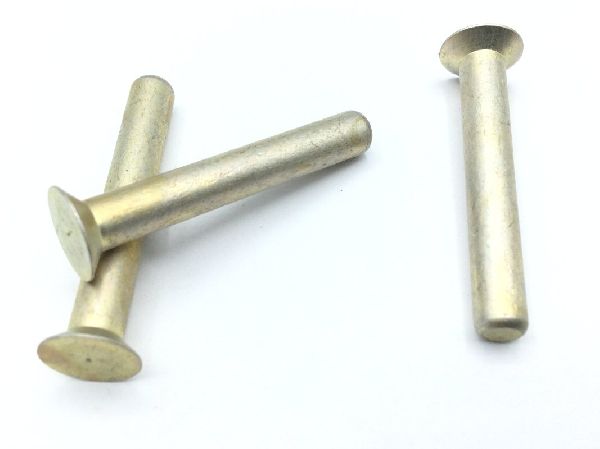

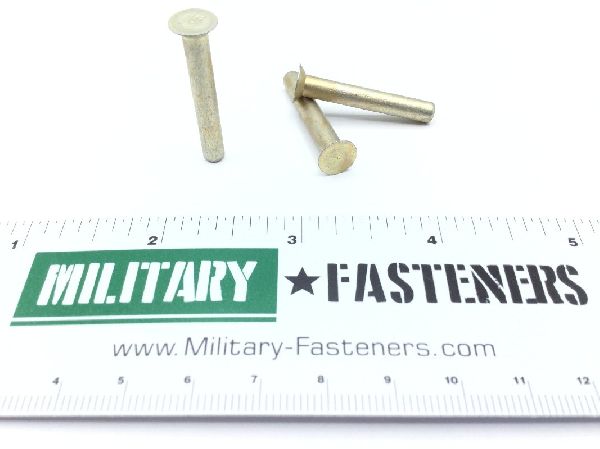

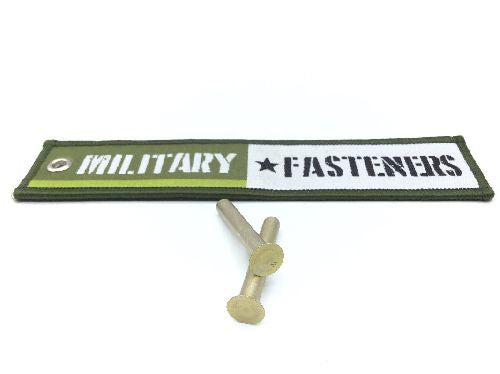

MS20426D6-20 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2017

Surface Treatment

Class 1a military specification single treatment response mil-c-5541

Countersink Angle: Between 99.5 degrees and 101.5 degrees
Fastener Length: Between 1.240 inches and 1.260 inches
Grip Length: 0.865 mils and 0.885 centimeters
Head Height: 0.070 inches
Head Major Diameter: Between 0.349 inches and 0.357 inches
Heat Treatment: T-4 solution heat treated
Identification Code Color: Yellow
Material Specification: Uns a92017 federal specification single material response t4 qq-a-430
Shank Diameter: Between 0.187 inches and 0.191 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 33000 single pounds per square inch
Specification Data: 96906-ms20426 government standard and 88044-an426/canceled/ government standard
