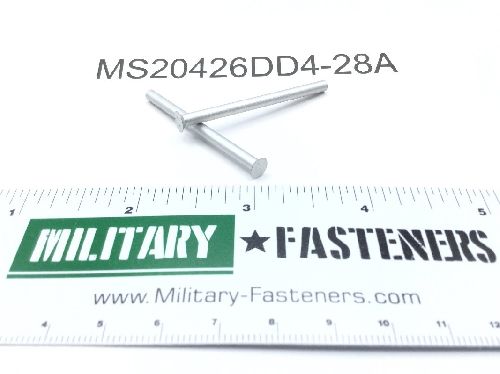

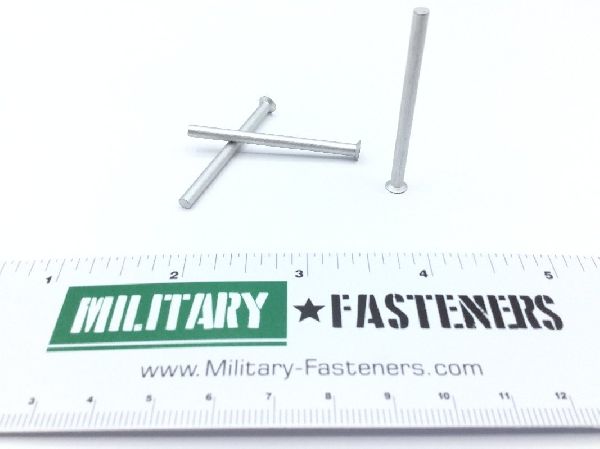

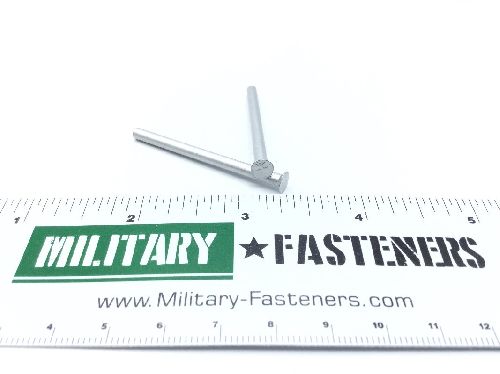

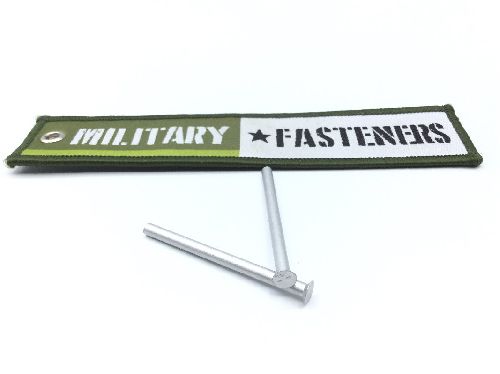

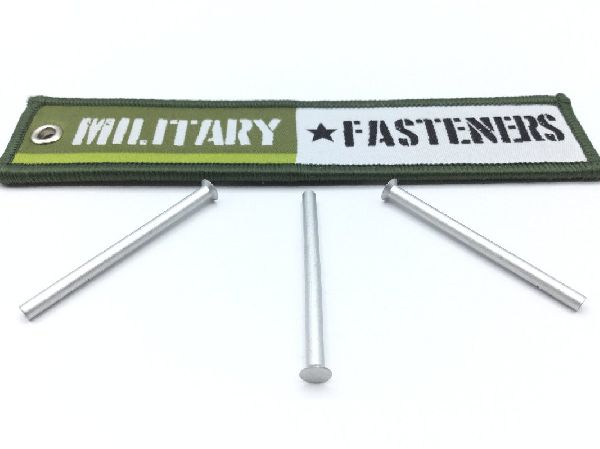

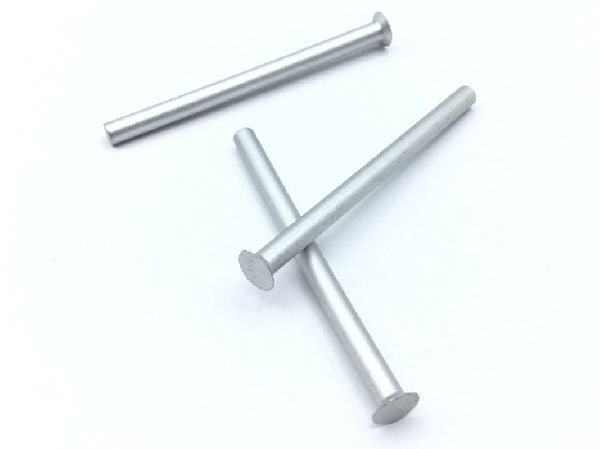

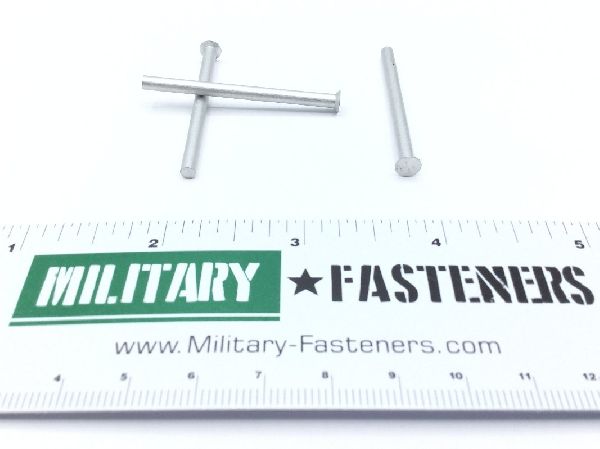

MS20426DD4-28A Solid Rivet

Product Series: MS
ECCN: 9A991
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk

Material

Aluminum alloy

Surface Treatment

Class 1 military specification single treatment response type 2 mil-a-8625

Countersink Angle: Between 99.5 degrees and 101.5 degrees
Fastener Length: Between 1.740 inches and 1.760 inches
Grip Length: 1.552 mils and 1.572 centimeters
Head Height: 0.042 inches
Head Major Diameter: Between 0.221 inches and 0.229 inches
Heat Treatment: T-73 solution heat treated
Identification Code Color: Natural
Material Specification: T73 uns a97050 federal specification single material response qq-a-430
Nondefinitive Specification/std Data: 2024 composition and t4 condition
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight with radius chamfered tip
Shear Strength: 41000 single pounds per square inch
Specification Data: 96906-ms20426 government standard and 88044-an426/canceled/ government standard
