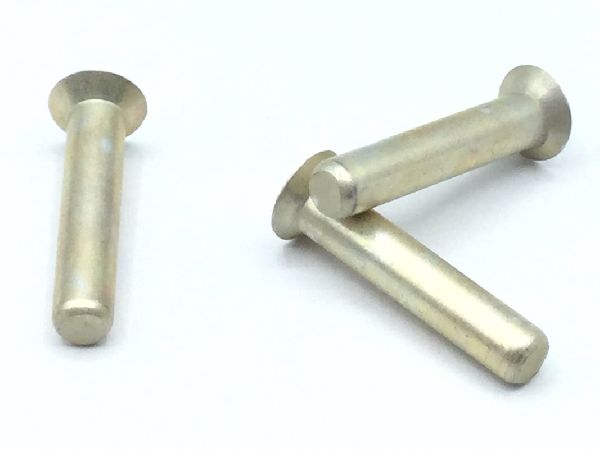

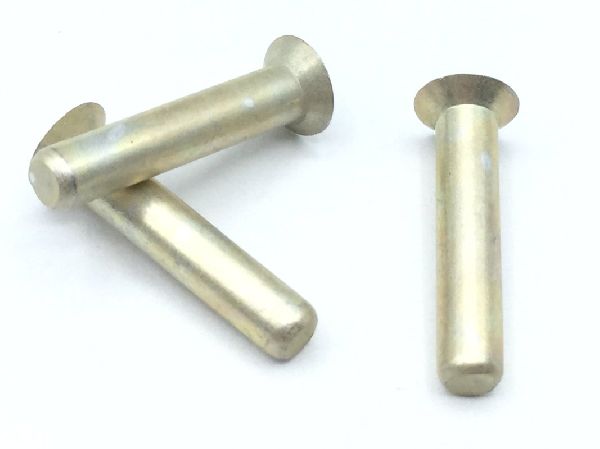

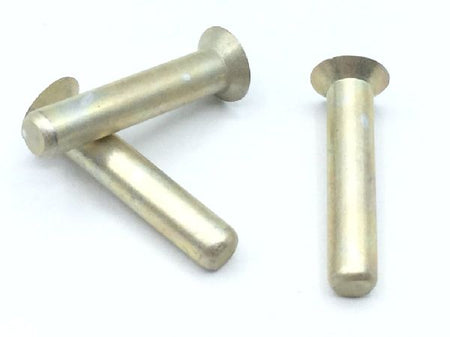

MS20426E4-10 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $50.53

Units per Pack 1

Price per Pack $50.53

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $50.53

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum

Surface Treatment

Class 1a military specification single treatment response mil-c-5541

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.615 inches and 0.635 inches
Head Major Diameter: 0.229 inches
Heat Treatment: T-73 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 41000 single pounds per square inch
Special Features: Aluminum alloy 7050
