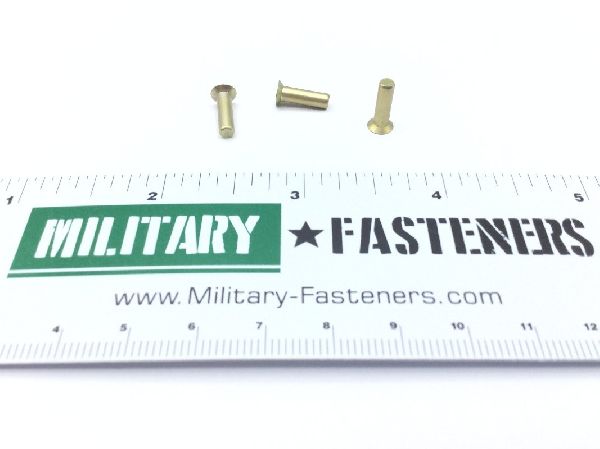

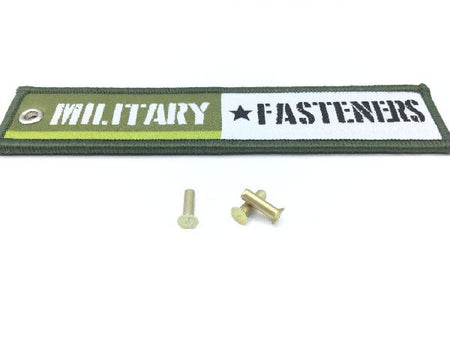

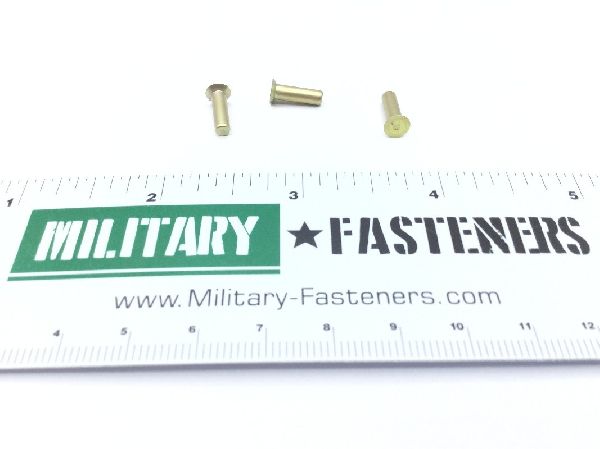

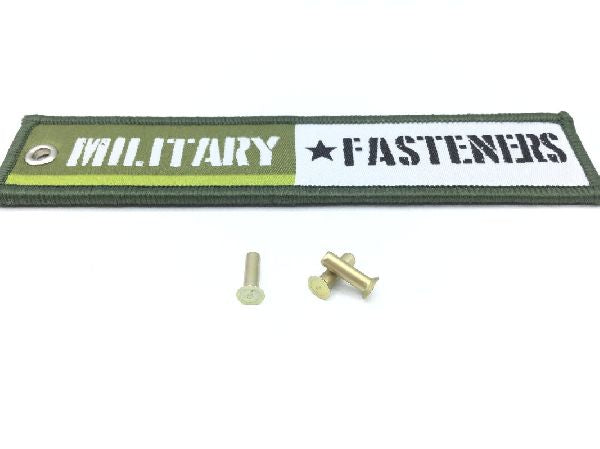

MS20426E4-7 Solid Rivet

MS20426E4-7 Solid Rivet (2)

MS20426E4-7 Solid Rivet (3)

MS20426E4-7 Solid Rivet (4)

MS20426E4-7 Solid Rivet (5)

MS20426E4-7 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20426E4-7 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $0.12

Units per Pack 250

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 250

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.428 inches and 0.448 inches
Head Major Diameter: 0.229 inches
Heat Treatment: T-73 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 41000 single pounds per square inch
Special Features: Aluminum alloy 7050
