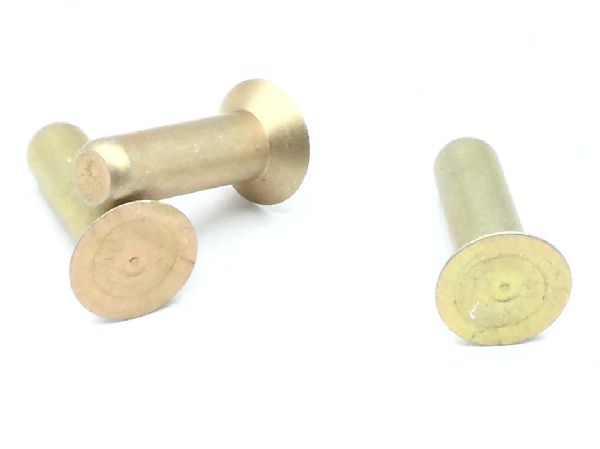

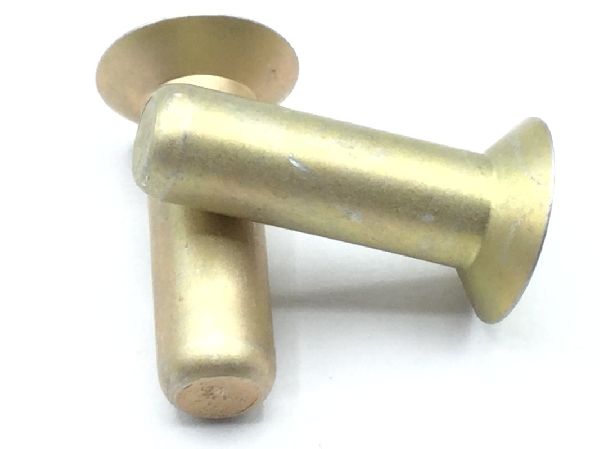

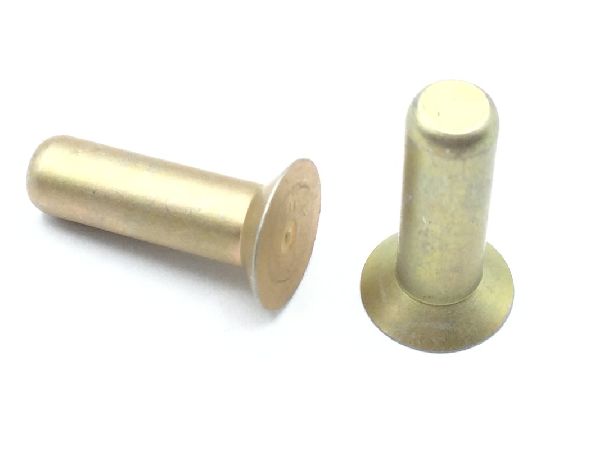

MS20426E6-10 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $60.91

Units per Pack 1

Price per Pack $60.91

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $60.91

Add item to quote

Head Style

Flush (flat) countersunk

Material

Aluminum alloy

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Fastener Length: Between 0.615 inches and 0.635 inches
Head Major Diameter: 0.357 inches
Heat Treatment: T-73 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.186 inches and 0.190 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 41000 single pounds per square inch
Special Features: Aluminum alloy 7050
