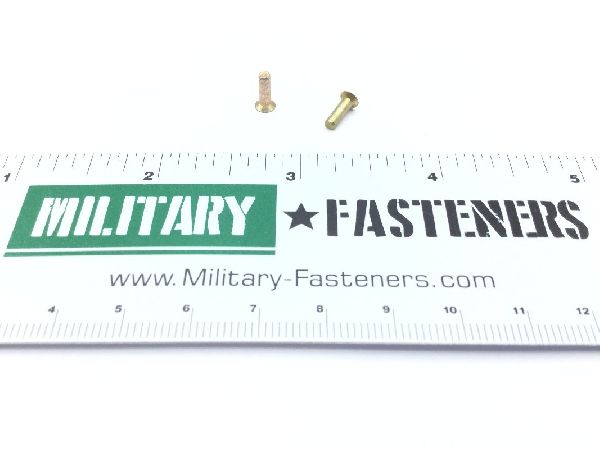

MS20427-3C5 Solid Rivet

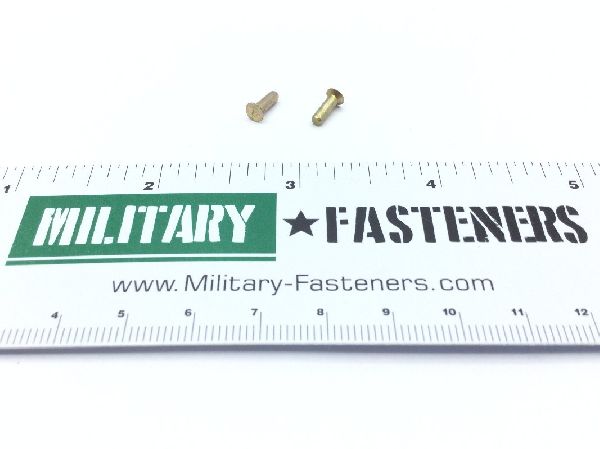

MS20427-3C5 Solid Rivet (2)

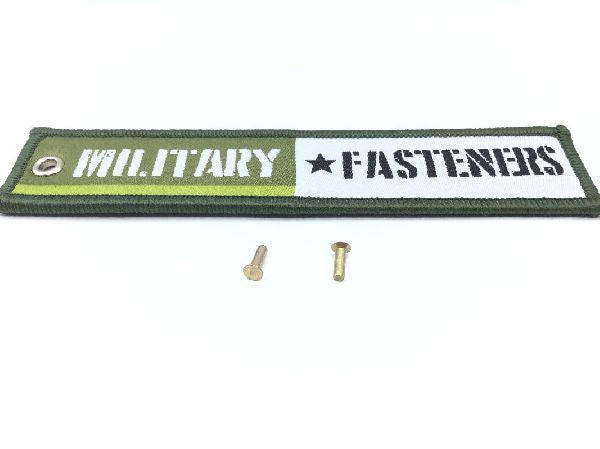

MS20427-3C5 Solid Rivet (3)

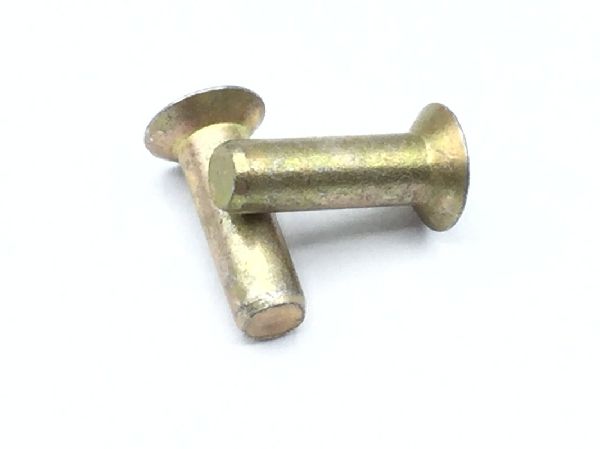

MS20427-3C5 Solid Rivet (4)

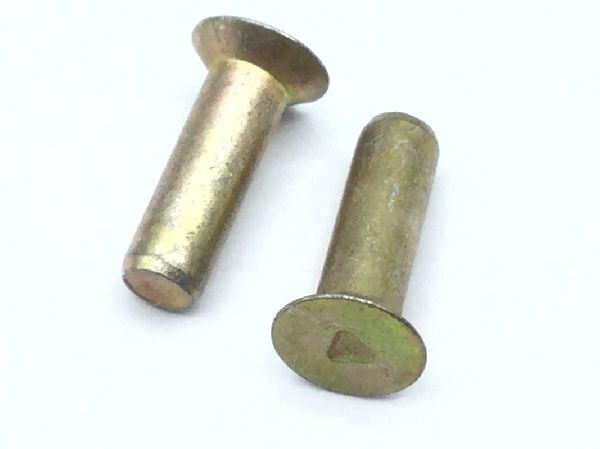

MS20427-3C5 Solid Rivet (5)
MS20427-3C5 Solid Rivet (6)
MS20427-3C5 Solid Rivet
MS20427-3C5 Solid Rivet (2)
MS20427-3C5 Solid Rivet (3)
MS20427-3C5 Solid Rivet (4)
MS20427-3C5 Solid Rivet (5)
MS20427-3C5 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20427-3C5 Solid Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Steel comp 1012
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Countersink Angle
Between 98.5 degrees and 101.5 degrees
Fastener Length
Between 0.302 inches and 0.322 inches
Grip Length
0.172 inches
Head Major Diameter
0.155 inches
Heat Treatment
Annealed
Material Specification
Qq-w-409 federal specification single material response
Shank Diameter
Between 0.093 inches and 0.097 inches
Shank Style
Straight
Shear Strength
32000 single pounds per square inch
