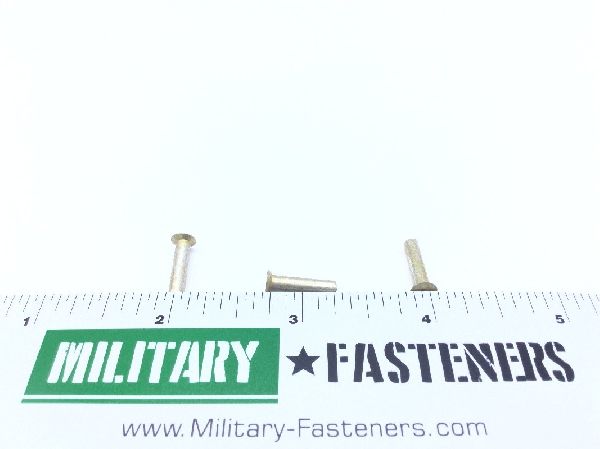

MS20427-4C9 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Countersink Angle: Between 98.5 degrees and 101.5 degrees
Fastener Length: Between 0.552 inches and 0.572 inches
Grip Length: 0.375 inches
Head Major Diameter: Between 0.201 inches and 0.236 inches
Heat Treatment: Annealed
Material Specification: 66 federal standard all material responses
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight
Shear Strength: 32000 single pounds per square inch
