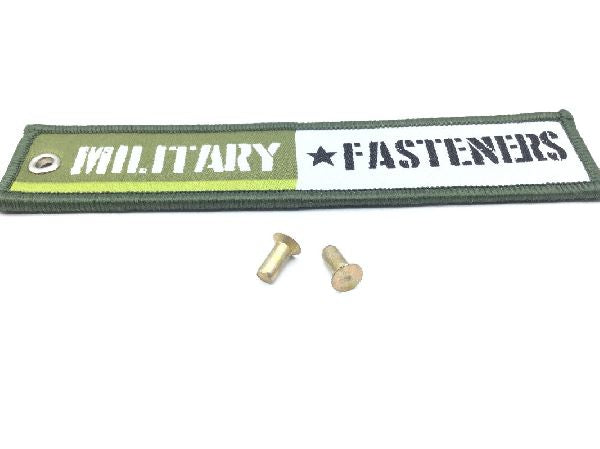

MS20427-5C6 Solid Rivet

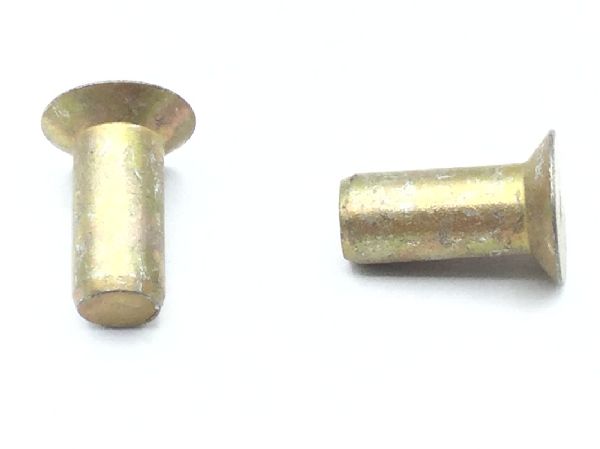

MS20427-5C6 Solid Rivet (2)

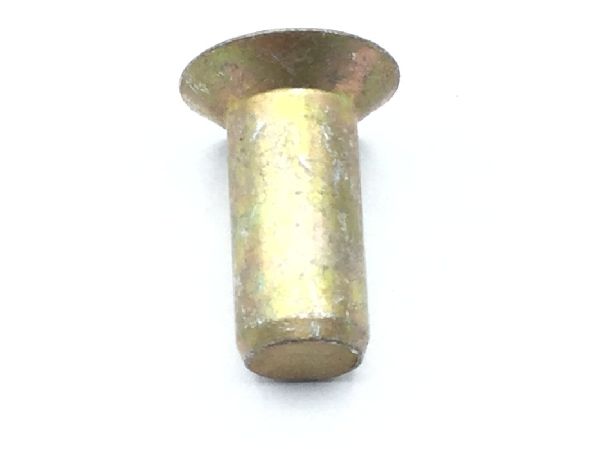

MS20427-5C6 Solid Rivet (3)

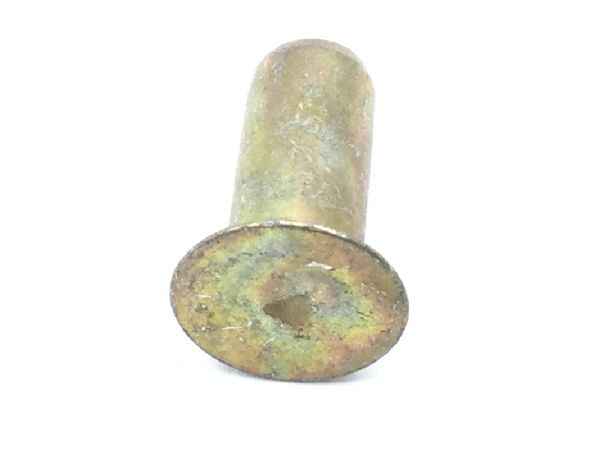

MS20427-5C6 Solid Rivet (4)

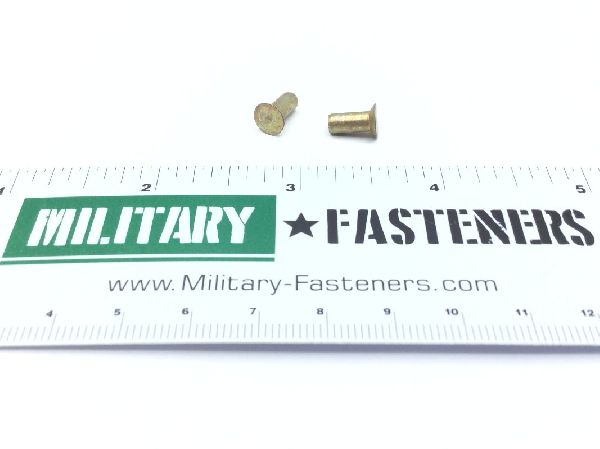

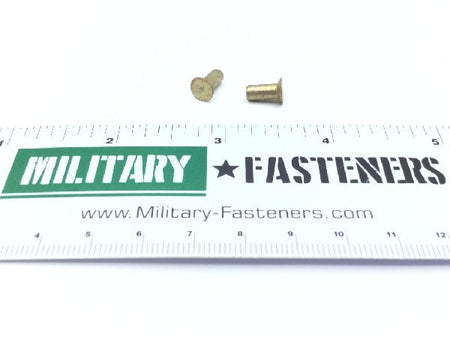

MS20427-5C6 Solid Rivet (5)

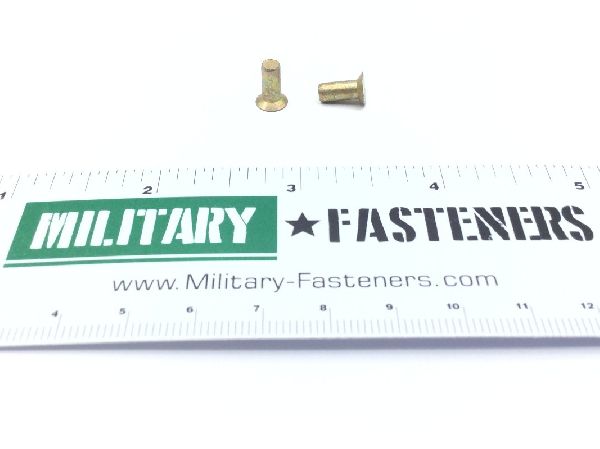

MS20427-5C6 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20427-5C6 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $41.51

Units per Pack 1

Price per Pack $41.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.51

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 1010 or steel comp 1011 or steel comp 1012 or steel comp 1013 or steel comp 1015

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Countersink Angle: Between 98.5 degrees and 101.5 degrees
Fastener Length: Between 0.365 inches and 0.385 inches
Head Major Diameter: Between 0.257 inches and 0.298 inches
Heat Treatment: Annealed
Material Specification: 66 federal standard all material responses
Shank Diameter: Between 0.155 inches and 0.159 inches
Shank Style: Straight
Shear Strength: 32000 single pounds per square inch
