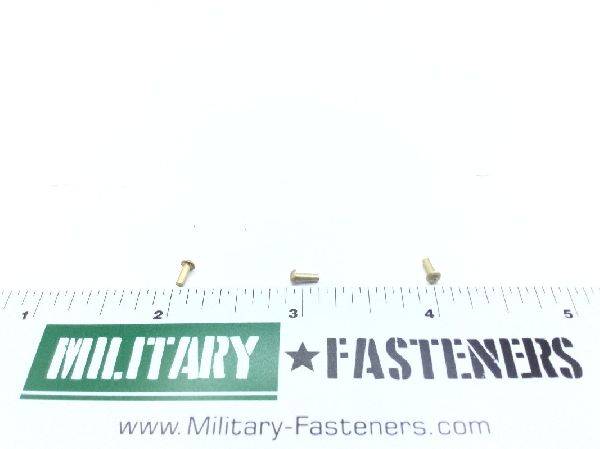

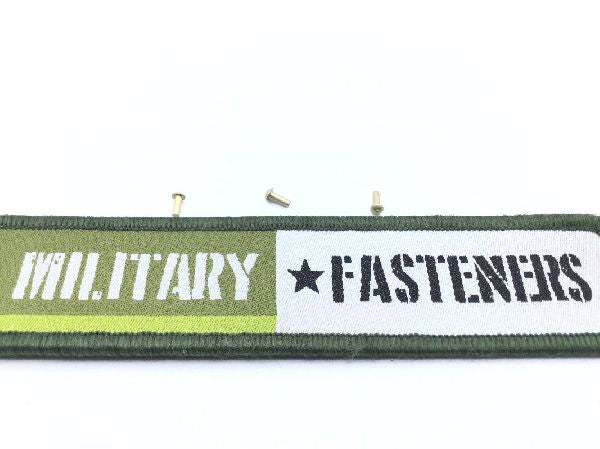

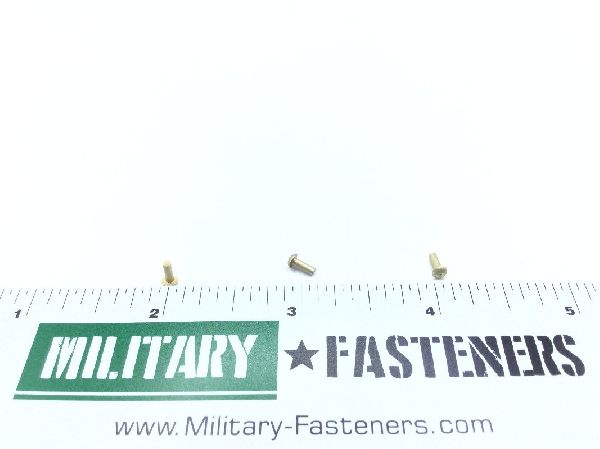

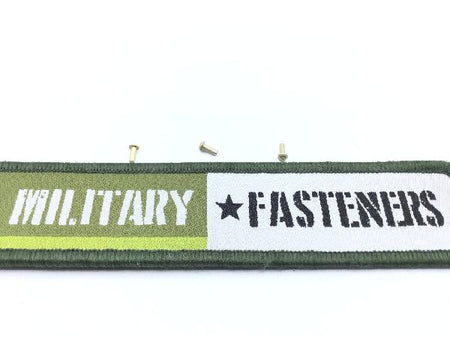

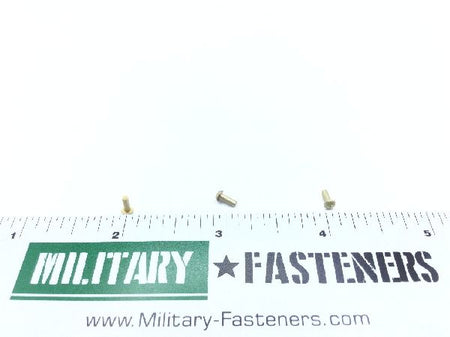

MS20470AD2-3 Solid Rivet
MS20470AD2-3 Solid Rivet (2)
MS20470AD2-3 Solid Rivet (3)
MS20470AD2-3 Solid Rivet (4)
MS20470AD2-3 Solid Rivet (5)
MS20470AD2-3 Solid Rivet (6)
MS20470AD2-3 Solid Rivet
MS20470AD2-3 Solid Rivet (2)
MS20470AD2-3 Solid Rivet (3)
MS20470AD2-3 Solid Rivet (4)
MS20470AD2-3 Solid Rivet (5)
MS20470AD2-3 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20470AD2-3 Solid Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Universal
Material
Aluminum alloy 2117
Surface Treatment
Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response
Fastener Length
Between 0.178 inches and 0.198 inches
Grip Length
Between 0.084 inches and 0.104 inches
Head Height
Between 0.027 inches and 0.037 inches
Head Major Diameter
Between 0.119 inches and 0.131 inches
Material Specification
Qq-a-430 federal specification single material response
Shank Diameter
Between 0.061 inches and 0.065 inches
Shank Style
Straight
Shear Strength
26000 single pounds per square inch
