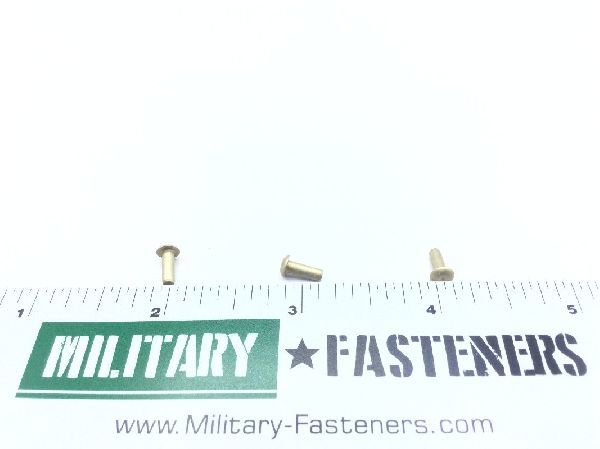

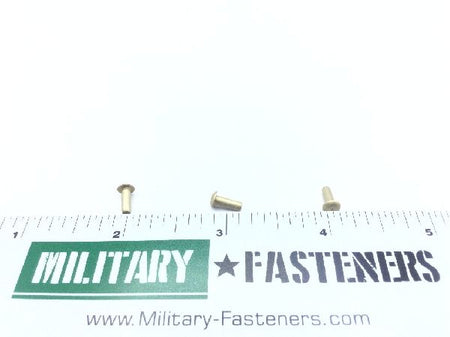

MS20470AD3-4.5 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $73.45

Units per Pack 1

Price per Pack $73.45

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $73.45

Add item to quote

Head Style

Universal

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Fastener Length: Between 0.271 inches and 0.291 inches
Head Height: Between 0.040 inches and 0.050 inches
Head Major Diameter: Between 0.178 inches and 0.196 inches
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.093 inches and 0.097 inches
Shank Style: Straight
Shear Strength: 26000 single pounds per square inch
