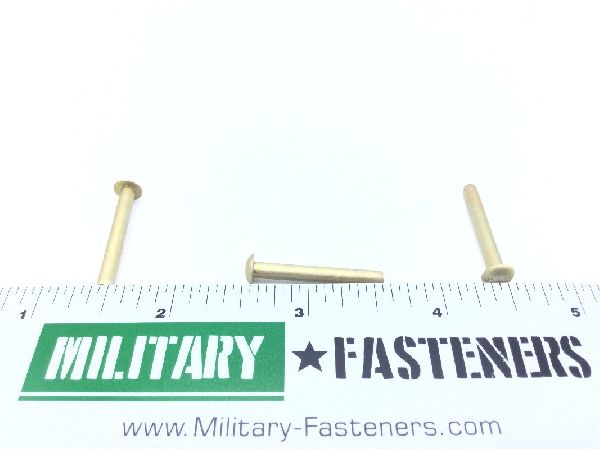

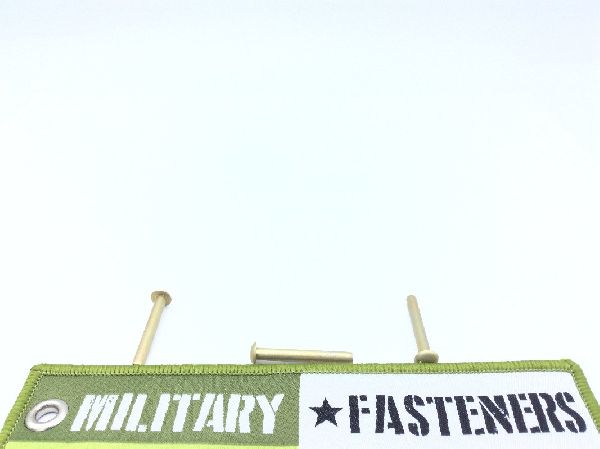

MS20470AD4-16 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $49.82

Units per Pack 1

Price per Pack $49.82

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $49.82

Add item to quote

Head Style

Universal

Material

Aluminum alloy 2117

Surface Treatment

Mil-c-5541 military specification 1st treatment response or mil-a-8625 military specification 2nd treatment response

Fastener Length: Between 0.990 inches and 1.010 inches
Grip Length: 0.802 mils and 0.822 centimeters
Head Height: Between 0.054 inches and 0.064 inches
Head Major Diameter: Between 0.238 inches and 0.262 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
