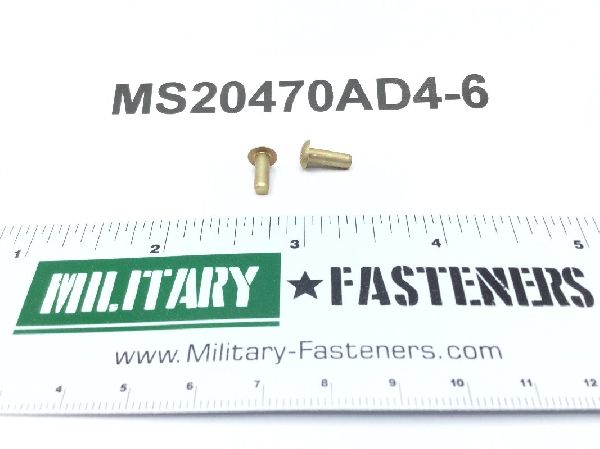

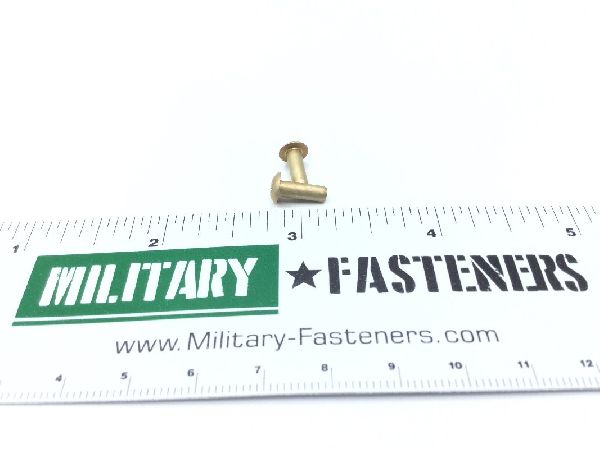

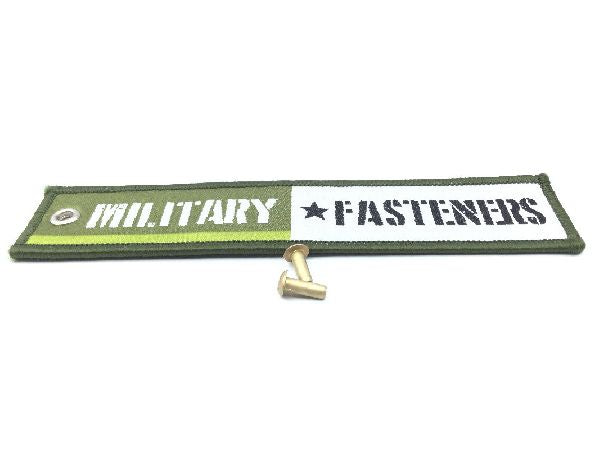

MS20470AD4-6 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Aluminum alloy 2117

Surface Treatment

Mil-c-5541 military specification 1st treatment response or mil-a-8625 military specification 2nd treatment response

End Application: Multiple uses
Fastener Length: Between 0.365 in and 0.385 in
Grip Length: Between 0.177 in and 0.197 in
Head Height: Between 0.054 in and 0.064 in
Head Major Diameter: Between 0.238 in and 0.262 in
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 in and 0.128 in
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
