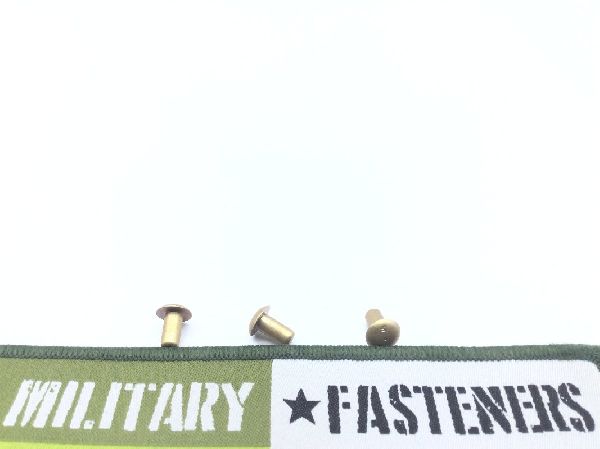

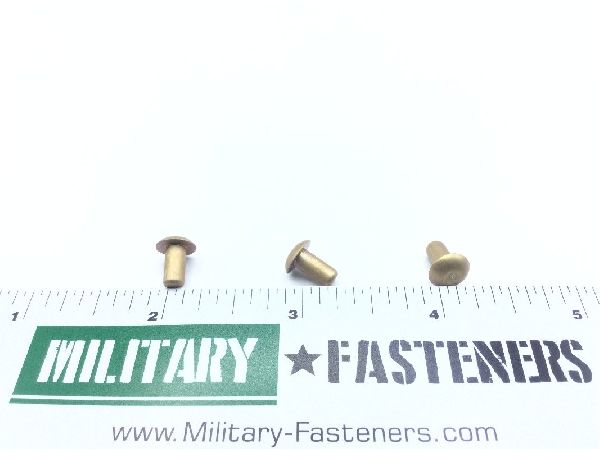

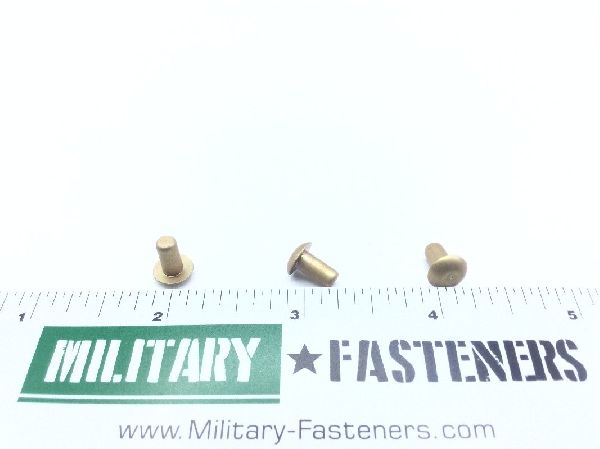

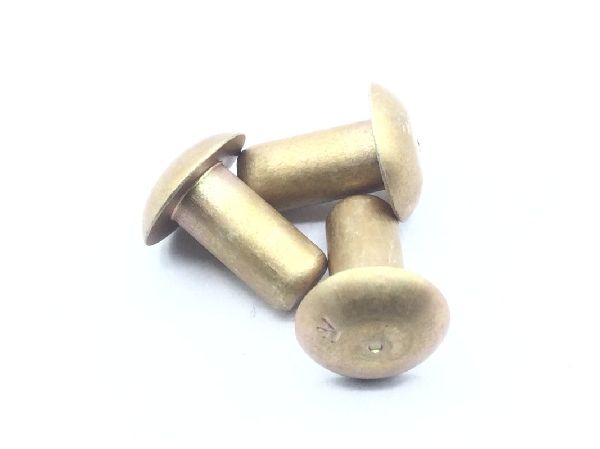

MS20470AD5-5 Solid Rivet
Unit of Measure:
LBS
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 0.302 inches and 0.322 inches
- Grip Length
- Between 0.068 inches and 0.088 inches
- Head Height
- Between 0.067 inches and 0.077 inches
- Head Major Diameter
- Between 0.296 inches and 0.328 inches
- Material Specification
- Qq-a-430 federal specification single material response
- Shank Diameter
- Between 0.155 inches and 0.16 inches
- Shank Style
- Straight
- Shear Strength
- 26000 single pounds per square inch
