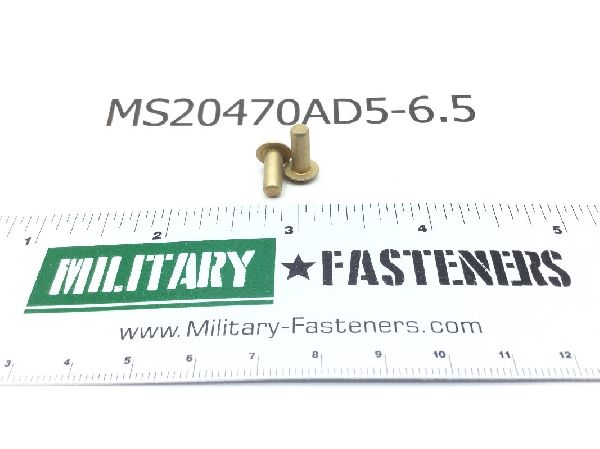

MS20470AD5-6.5 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $47.05

Units per Pack 1

Price per Pack $47.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $47.05

Add item to quote

Head Style

Universal

Material

Aluminum alloy 2117

Surface Treatment

Mil-c-5541 military specification single treatment response

Fastener Length: Between 0.396 inches and 0.416 inches
Head Height: Between 0.067 inches and 0.077 inches
Head Major Diameter: Between 0.296 inches and 0.328 inches
Heat Treatment: T-4 solution heat treated
Identification Code Color: Yellow
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.155 inches and 0.160 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
