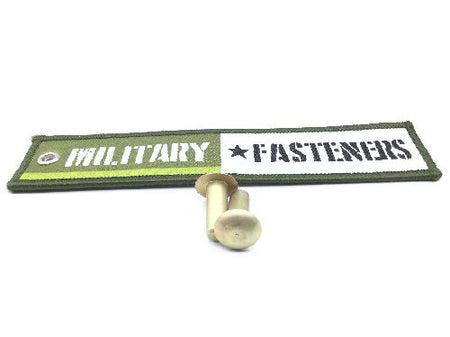

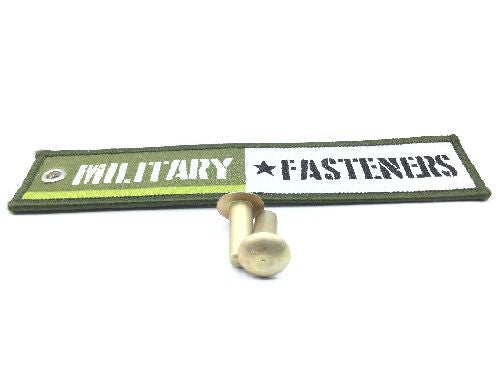

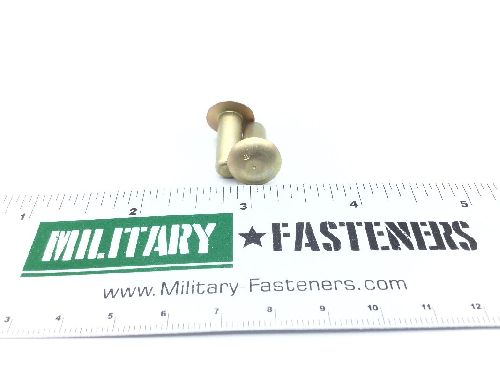

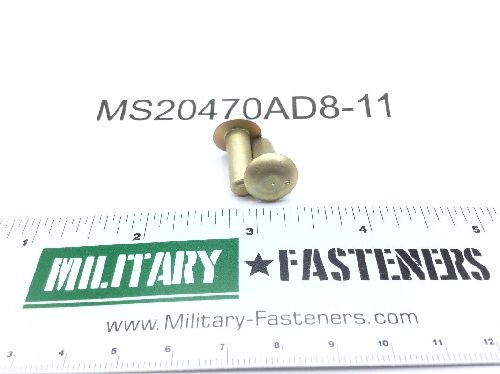

MS20470AD8-11 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Fastener Length: Between 0.678 inches and 0.698 inches
Head Height: Between 0.107 inches and 0.117 inches
Head Major Diameter: Between 0.475 inches and 0.525 inches
Heat Treatment: T-4 solution heat treated
Identification Code Color: Yellow
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.249 inches and 0.254 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
