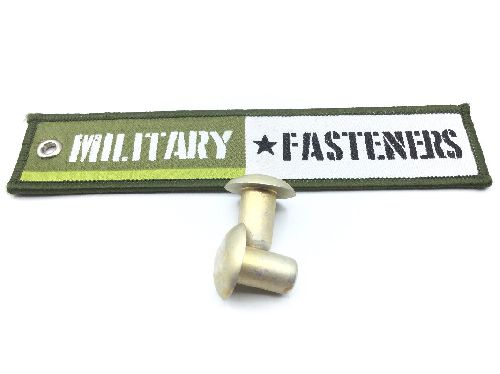

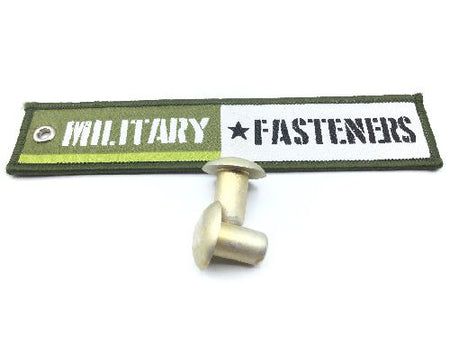

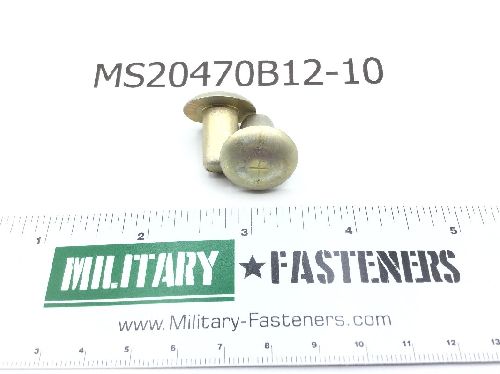

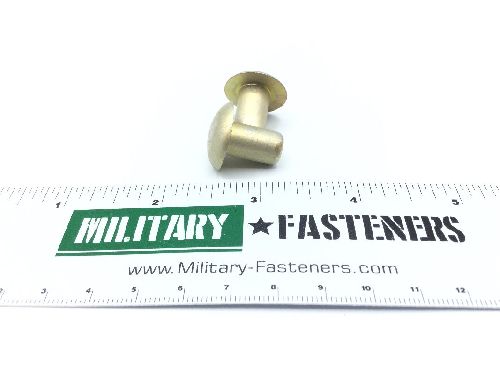

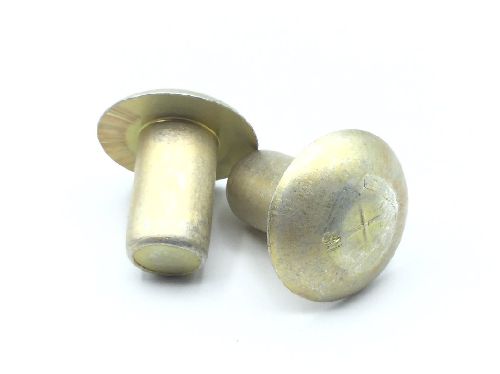

MS20470B12-10 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Aluminum alloy 5056

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Fastener Length: Between 0.615 inches and 0.635 inches
Head Height: Between 0.161 inches and 0.171 inches
Head Major Diameter: Between 0.713 inches and 0.787 inches
Heat Treatment: H-32 strain hardened
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.374 inches and 0.379 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 24000 single pounds per square inch
