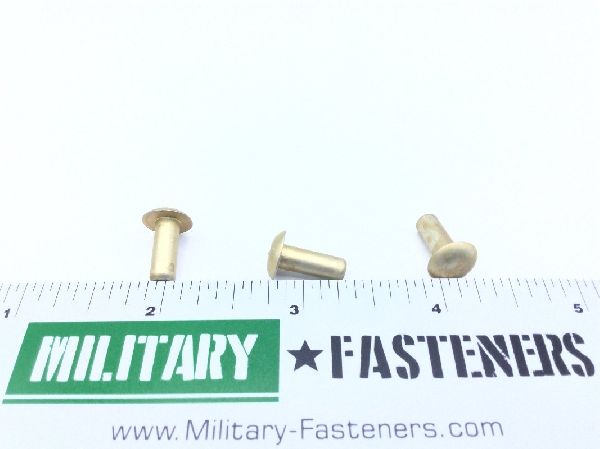

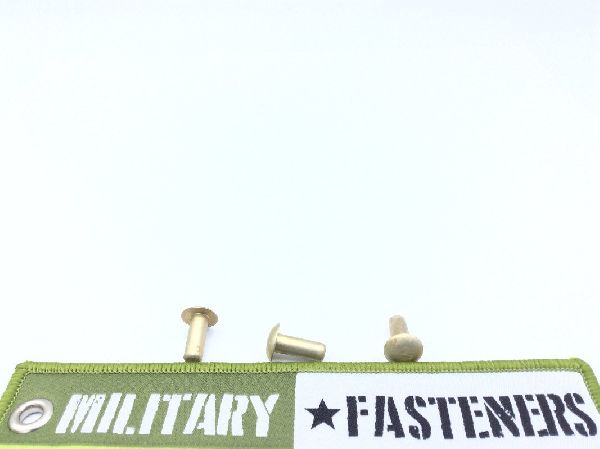

MS20470D6-8 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Aluminum alloy 2017

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Fastener Length: Between 0.490 inches and 0.510 inches
Grip Length: Between 0.209 inches and 0.229 inches
Head Height: Between 0.080 inches and 0.090 inches
Head Major Diameter: Between 0.356 inches and 0.394 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.186 inches and 0.191 inches
Shank Style: Straight
Shear Strength: 33000 single pounds per square inch
