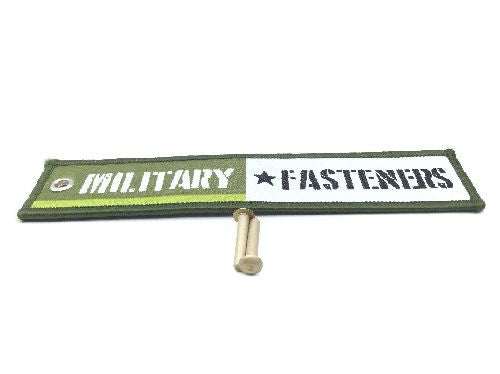

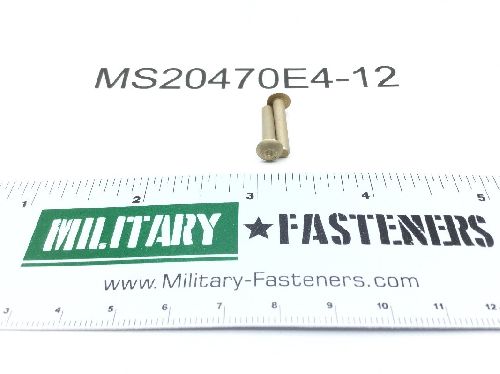

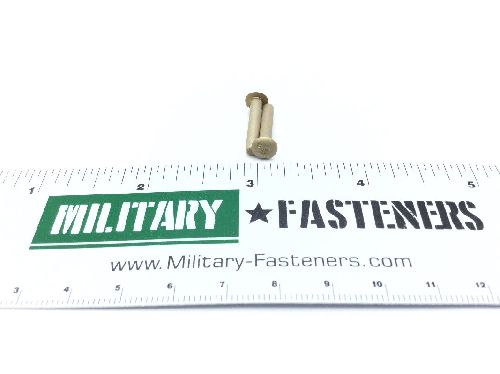

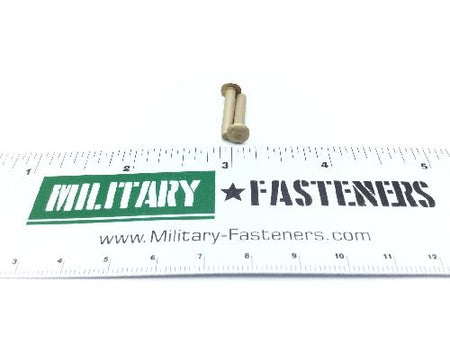

MS20470E4-12 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Aluminum alloy

Surface Treatment

Mil-c-5541 cl 1a military specification single treatment response

Fastener Length: Between 0.740 inches and 0.760 inches
Head Height: Between 0.054 inches and 0.064 inches
Head Major Diameter: Between 0.238 inches and 0.262 inches
Heat Treatment: T-73 solution heat treated
Identification Code Color: Yellow
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 41000 single pounds per square inch
Special Features: Aluminum alloy 7050
