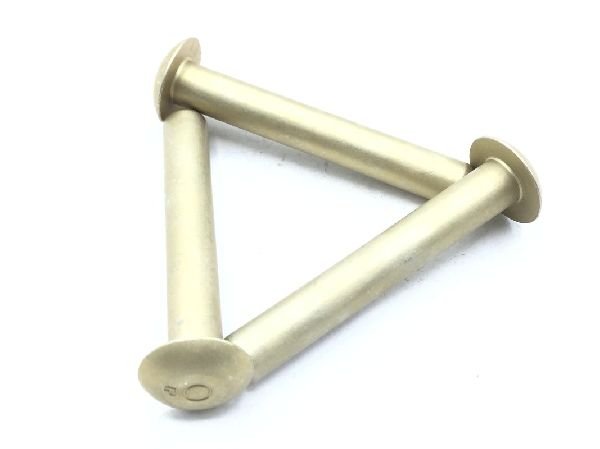

MS20470E6-20 Solid Rivet

MS20470E6-20 Solid Rivet (2)

MS20470E6-20 Solid Rivet (3)

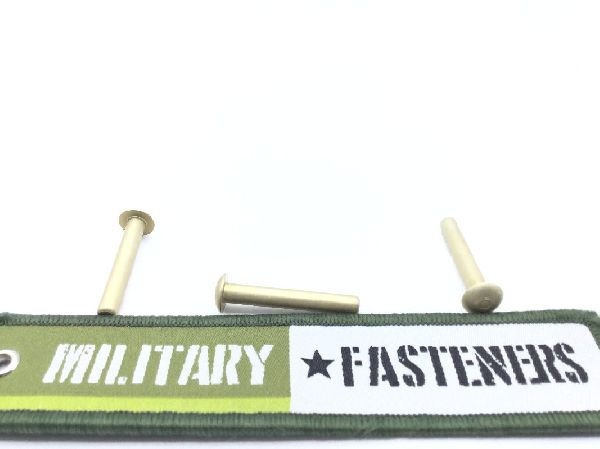

MS20470E6-20 Solid Rivet (4)

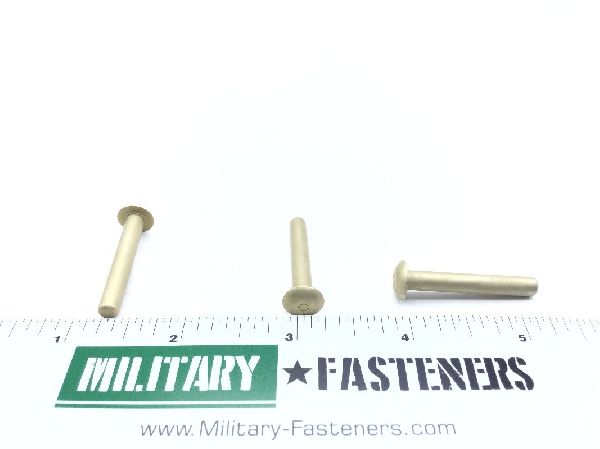

MS20470E6-20 Solid Rivet (5)

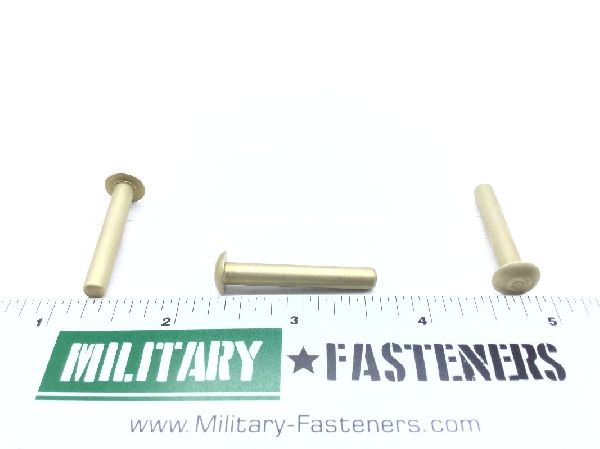

MS20470E6-20 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20470E6-20 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $51.21

Units per Pack 1

Price per Pack $51.21

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $51.21

Add item to quote

Head Style

Universal

Material

Aluminum alloy

Surface Treatment

Mil-c-5541 cl 1a military specification single treatment response

Fastener Length: Between 1.240 inches and 1.260 inches
Head Height: Between 0.080 inches and 0.090 inches
Head Major Diameter: Between 0.356 inches and 0.394 inches
Heat Treatment: T-73 solution heat treated
Identification Code Color: Yellow
Material Specification: Qq-a-430 comp 7050 federal specification single material response
Shank Diameter: Between 0.186 inches and 0.191 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 41000 single pounds per square inch
