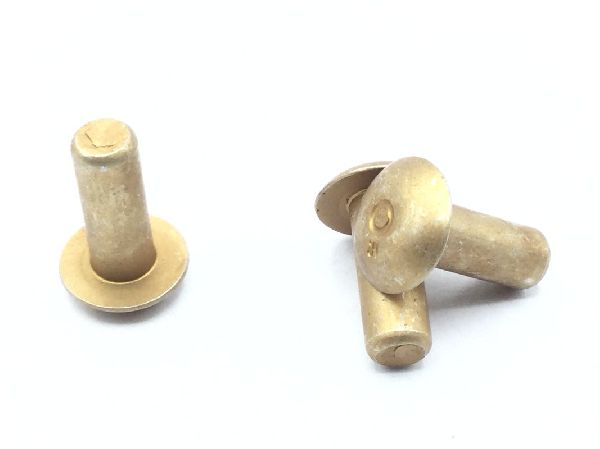

MS20470E6-8 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Aluminum alloy

Surface Treatment

Mil-c-5541 cl 1a military specification single treatment response

Fastener Length: Between 0.490 inches and 0.510 inches
Head Height: Between 0.080 inches and 0.090 inches
Head Major Diameter: Between 0.356 inches and 0.394 inches
Heat Treatment: T-73 solution heat treated
Identification Code Color: Yellow
Material Specification: Qq-a-430 comp 7050 federal specification single material response
Shank Diameter: Between 0.186 inches and 0.191 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 41000 single pounds per square inch
