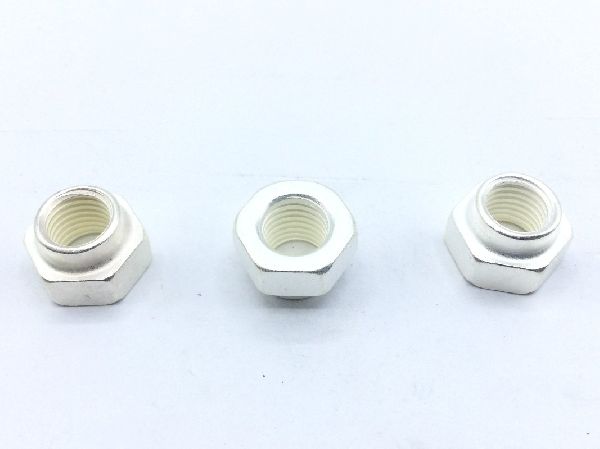

MS20500-524 Self-Locking Hexagon Nut (2)

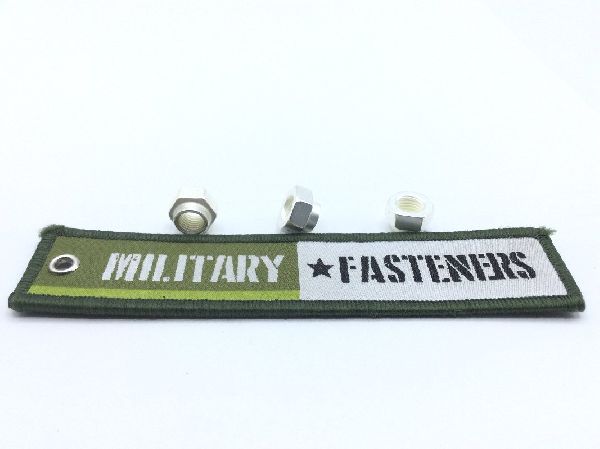

MS20500-524 Self-Locking Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

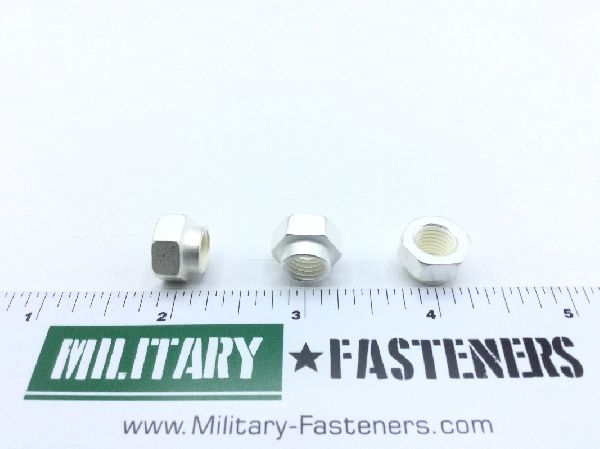

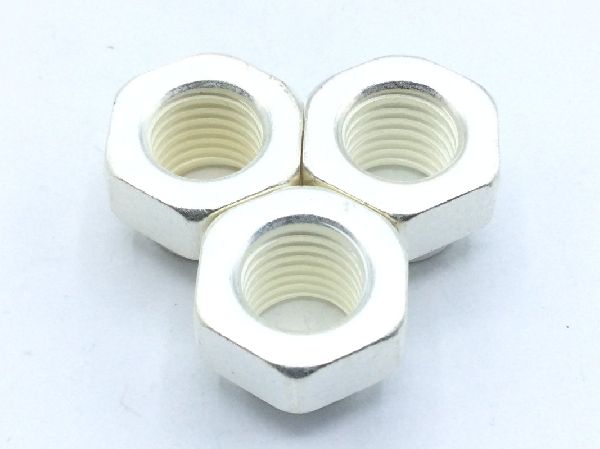

MS20500-524 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Bearing Surface Type: Chamfered
Countersink Angle: 88.0 degrees nut
Iii Bearing Surface Finish: 125.0 microinches
Iii End Application: Mrap - m-atv ui
Iii Precious Material: Silver
Iii Precious Material And Location: All surfaces silver
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.312 inches and 0.360 inches
Nut Style: Hexagon
Tempurature Rating: 1200.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.492 inches and 0.502 inches
