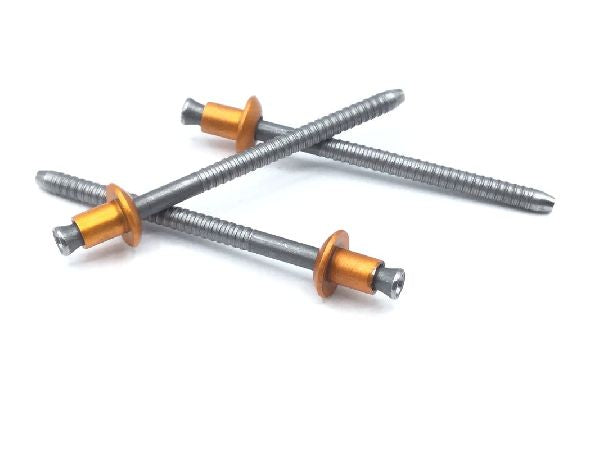

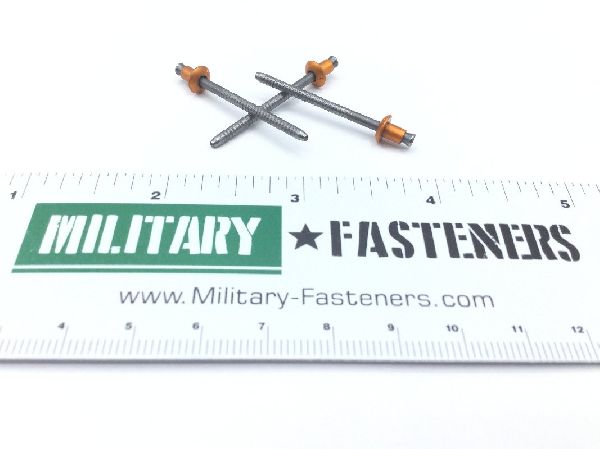

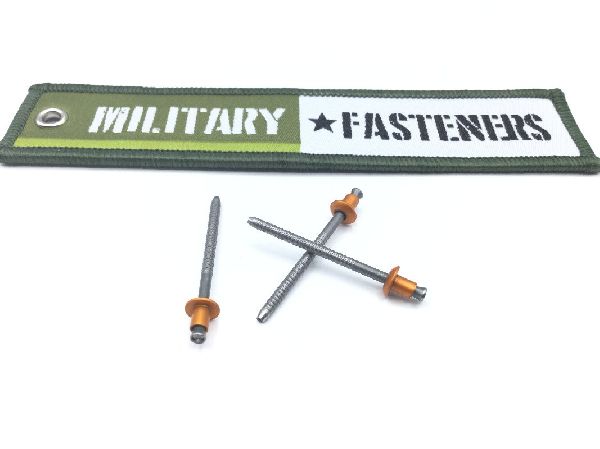

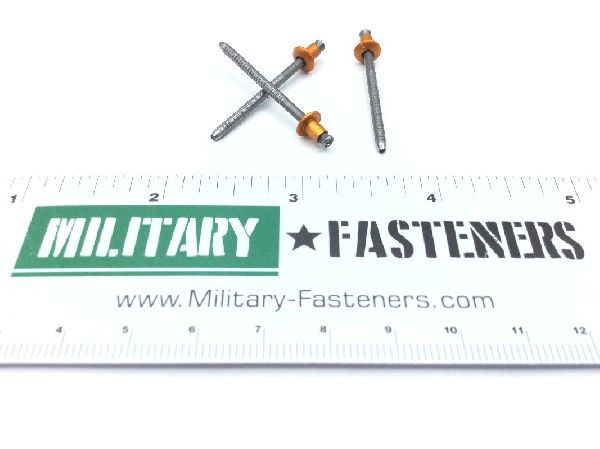

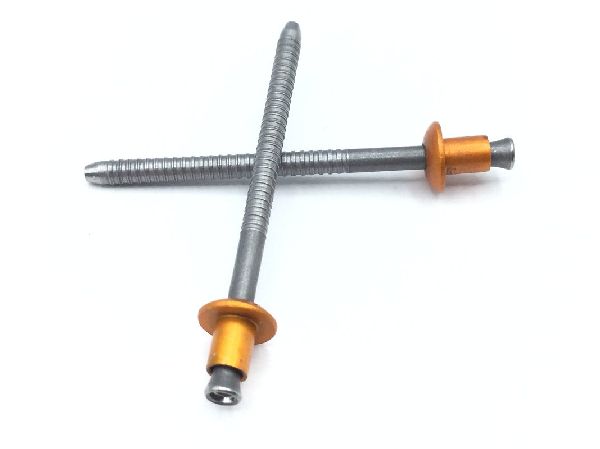

MS20604B4W1 Blind Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Universal
Material
Aluminum alloy 5056
Surface Treatment
Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response
Expansion Device
Serrated stem-type w
Fastener Length
0.170 inches
Grip Length
Between 0.015 inches and 0.062 inches
Head Height
Between 0.054 inches and 0.064 inches
Head Major Diameter
Between 0.238 inches and 0.262 inches
Material Specification
Mil-w-7986 military specification single material response
Shank Diameter
Between 0.124 inches and 0.128 inches
Shank Style
Pull through hollow shank
Shear Strength
125 single pounds per square inch
